Name: Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-CSYT-A
Price: 5,000.00 USD
Availability: InStock

En casa > productos > Environmental Monitoring >

Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function

Lugar de origen:

Porcelana

Nombre de la marca:

KACISE

Certificación:

Número de modelo:

KQS-CSYT-A

Contacta con nosotros

Solicitar una cita

Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function

Detalles del producto

Rango de velocidad del viento:

0-70 m/s

Parámetros medidos:

Velocidad del viento, dirección del viento, temperatura, humedad, presión, brújula, GPS (opcional)

Exactitud:

Velocidad del viento: ±(0,5+0,02rdg) m/s; Dirección del viento: ±3°; Temperatura: ±0,3°C

Protección:

Estructura completamente sellada, resistente a la corrosión y a la niebla salina.

Solicitud:

Puertos, islas, embarcaciones, plataformas de perforación petrolera en alta mar.

Salida de señal:

RS485 con protocolo Modbus estándar

Condiciones de pago y envío

Cantidad de orden mínima

1 piezas

Detalles de empaquetado

Cada unidad tiene caja individual, todas las cajas empacadas en paquetes estándar o según solicitud

Tiempo de entrega

5-8 días laborables

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociable

Productos relacionados

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Obtenga el mejor precio

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Obtenga el mejor precio

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Obtenga el mejor precio

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

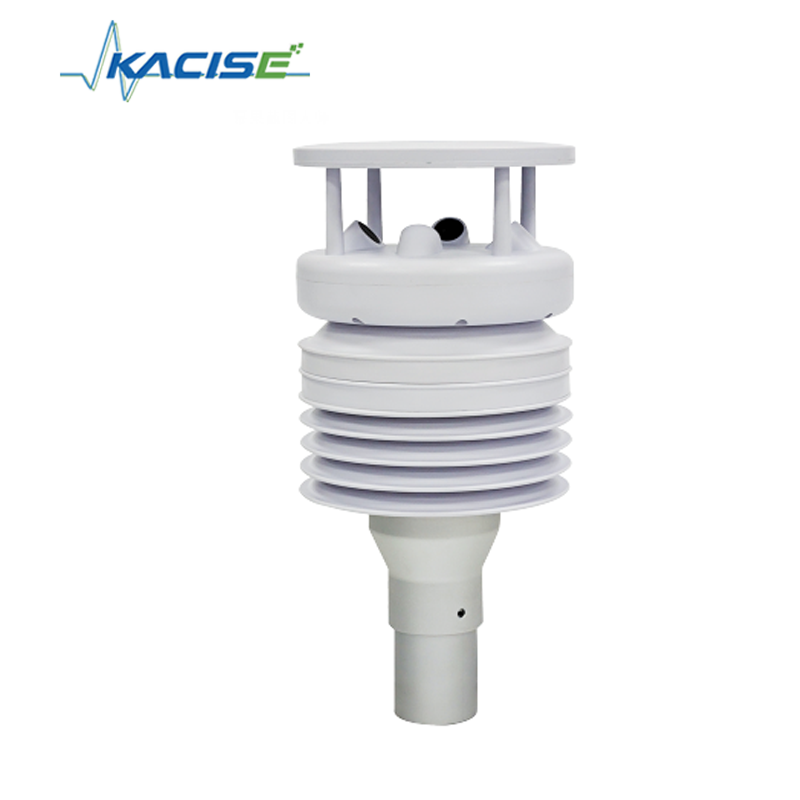

KQS-CSYT-A Corrosion-Resistant Ultrasonic Environmental Monitor

The KQS-CSYT-A corrosion-resistant ultrasonic environmental monitor is a meteorological environmental monitoring instrument specifically designed for marine environments or highly corrosive gas environments. Compared with traditional ultrasonic environmental monitors, it features specially selected corrosion-resistant ultrasonic transducers and a specialized structural design that enhances corrosion resistance and sensor probe replaceability.

Product Features

Designed for harsh marine environments; temperature, humidity, and pressure sensors use polymer membranes to extend service life
Easy maintenance: when the temperature/humidity probe reaches end of life, it can be replaced directly without returning the entire unit for repair
Advanced filtering algorithms with special compensation for rain and fog conditions
Uses high-quality 200 kHz ultrasonic transducers for more accurate and stable wind measurement
Salt-spray resistant probes with fully sealed structure, tested to national standards; suitable for coastal and port environments
RS485 output with standard Modbus protocol for easy system integration
Modular and highly integrated design
Low power consumption
Optional heating function, electronic compass, and GPS support

Technical Parameters

Environmental Parameter (Optional)	Range	Accuracy	Resolution	Power Consumption
Wind speed	0-70 m/s	Start wind speed ≤ 0.8 m/s, ±(0.5 + 0.02rdg) m/s	0.01 m/s	0.1 W
Wind direction	0-360°	±3°	1°	--
Air temperature	-40-80°C	±0.3°C	0.1°C	1 mW
Air humidity	0-100% RH	±5% RH	0.1% RH	1 mW
Atmospheric pressure	300-1100 hPa	±1 hPa (at 25°C)	0.1 hPa	0.1 mW
Electronic compass	0-360°	±5°	1°	100 mW
GPS (longitude)	-180° to 180°	≤10 m	0.1 s	--
GPS (latitude)	-90° to 90°	≤10 m	0.1 s	--
GPS (altitude)	-3276.7 to 3276.7 m	≤3 m	0.1 m	--

Total Power Consumption: Total power = power of selected sensors + base board power; base board power is 300 mW.

Dimensions
