Name: UD18 Ultrasonic distance sensors
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: UD18
Price: 1,000.10 USD
Availability: InStock

En casa > productos > sensor ultrasónico del transductor >

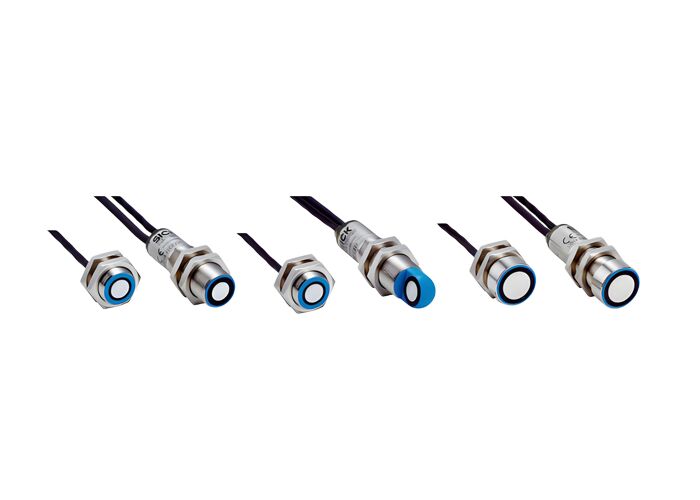

UD18 Ultrasonic distance sensors

UD18 ultrasonic distance sensor

water quality ultrasonic sensor

distance sensor with warranty

Nombre de la marca:

SICK

Número de modelo:

UD18

Contacta con nosotros

Solicitar una cita

Detalles del producto

Temperatura ambiente, funcionamiento:

+5 °C ... +60 °C

Frecuencia de conmutación:

250 Hz / 100 Hz (según tipo)

Tipo de salida digital::

PNP / NPN (según tipo)

Calificación de recinto:

IP65

Eje de envío:

Recto/en ángulo (según tipo)

Resaltar:

UD18 ultrasonic distance sensor

water quality ultrasonic sensor

distance sensor with warranty

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

MoneyGram, Western Union, T/T, D/P, D/A, L/C

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

UC12 Ultrasonic distance sensors

Obtenga el mejor precio

UC30 Ultrasonic distance sensors

Obtenga el mejor precio

UD18 Ultrasonic distance sensors

Obtenga el mejor precio

UM12 Ultrasonic distance sensors

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

UD18 Ultrasonic Distance Sensors

The UD18 ultrasonic distance sensors specialize in double layer and splice detection for paper, cardboard, metal, and plastic materials. Using advanced ultrasonic technology, these sensors precisely determine whether one, two, or no material layers are present between the sender and receiver units.

Key Applications

The UD18-2 model excels at detecting double layers in challenging materials including paper, cardboard, shiny metal surfaces, and transparent plastics. With the ability to teach up to four sensitivity levels and switch between them during operation, these sensors handle complex applications while maintaining system availability and production quality.

Product Benefits

Maximum productivity and quality through reliable material transportation monitoring
Rapid commissioning with plug-and-play functionality and multiple sensitivity levels
Easy sensitivity level switching during operation prevents downtime during material changes
Individual material teach-in capability for demanding applications
Flexible installation with variable mounting distances
Multi-directional LED indicators for easy monitoring of double sheet detections
Reliable performance in dirty, dusty, and humid environments due to ultrasonic technology immunity

Technical Features

Material classification: no layers, single layer, double layers
Plug-and-play operation with selectable, teachable sensitivity levels
Up to four individual sensitivity levels
Variable mounting distance flexibility
Multi-directional LED visibility
Immunity to dirt, dust, and humidity

Technical Parameters

Parameter	Specification
Resolution	1 material layer
Response time	2.5 ms ... 5.5 ms¹ (depending on type)
Output time	2 ms ... 5 ms, trigger mode: < 0.5 ms¹ (depending on type)
Switching frequency	250 Hz / 100 Hz (depending on type)
Digital output	Type: PNP / NPN (depending on type)
Enclosure rating	IP65
Sending axis	Straight / angled (depending on type)
Ambient temperature, operation	+5 °C ... +60 °C

¹ Values vary by specific model type

Model Selection Guide

Product Variant	Part No.	Digital Output	Measuring Frequency	Switching Frequency	Response Time	Connection Type
UD18-22CC241	6058911	NPN	400 kHz	250 Hz	2.5 ms	Connection cable with open end: 7 x 0,25 mm², 2 m, PUR, sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR, receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR
UD18-22DC221	6058914	PNP	200 kHz	100 Hz	5.5 ms	Connection cable with open end: 7 x 0,25 mm², 2 m, PUR, sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR, receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR
UD18-22CC221	6058910	PNP	400 kHz	250 Hz	2.5 ms	Connection cable with open end: 7 x 0,25 mm², 2 m, PUR, sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR, receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR
UD18-22CC242	6058913	NPN	400 kHz	250 Hz	2.5 ms	Connection cable with open end: 7 x 0,25 mm², 2 m, PUR, sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR, receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR
UD18-22DC241	6058915	NPN	200 kHz	100 Hz	5.5 ms	Connection cable with open end: 7 x 0,25 mm², 2 m, PUR, sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR, receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR
UD18-22CC222	6058912	PNP	400 kHz	250 Hz	2.5 ms	Connection cable with open end: 7 x 0,25 mm², 2 m, PUR, sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR, receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR
