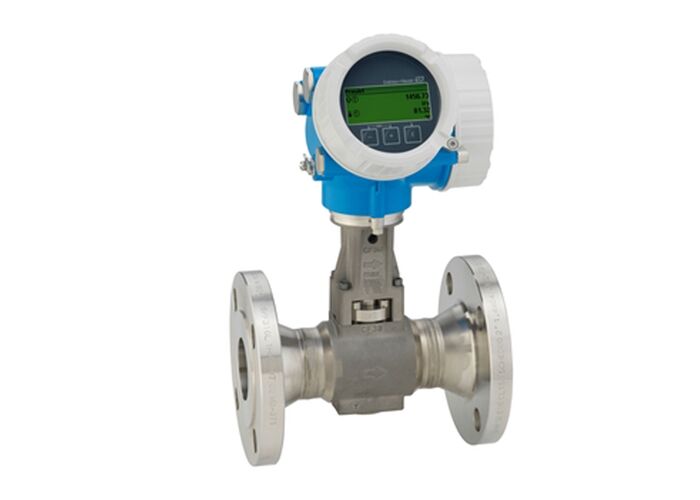

Name: Proline Prowirl F 200 vortex flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Prowirl F 200
Price: 2,540.00 USD
Availability: InStock

En casa > productos > Metro de flujo electromágnetico >

Proline Prowirl F 200 vortex flowmeter

Proline Prowirl F 200 flowmeter

vortex flowmeter with warranty

electromagnetic flow meter industrial

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Número de modelo:

Proline Prowirl F 200

Contacta con nosotros

Solicitar una cita

Detalles del producto

Productos:

HART de 4‐20 mA (pasivo)

Entradas:

Corriente de entrada 4-20 mA (pasiva)

Aprobación de zonas peligrosas:

ATEX, IECEx, cCSAus, Japón, EAC

Seguridad de productos:

Se aplicará el método de cálculo de las emisiones de gases de efecto invernadero.

Seguridad funcional:

Seguridad funcional de acuerdo con la IEC 61508, aplicable en aplicaciones de importancia para la se

Aprobaciones y certificados marítimos:

ABS, LR, BV, DNV, CCS

Resaltar:

Proline Prowirl F 200 flowmeter

vortex flowmeter with warranty

electromagnetic flow meter industrial

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Promass S 300 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass P 500 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass Q 300 Coriolis flowmeter

Obtenga el mejor precio

Proline t-mass F 500 thermal mass flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

Proline Prowirl F 200 Vortex Flowmeter

Versatile flowmeter with detection of wet steam conditions and best-in-class accuracy. Suitable for a wide range of applications with optimization for steam applications.

Field of Application

Prowirl F is the multivariable flowmeter with inline wet steam measurement. Its calibration option PremiumCal guarantees excellent measuring accuracy and highest plant availability at low flow rates of gas, steam and liquids. With genuine loop-powered technology, Prowirl F 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas.

Preferred Applications

Wet/saturated/superheated steam measurement
Gas flow measurement
Liquid flow measurement (including cryogenic)

Key Benefits

Easy energy management - integrated temperature and pressure measurement for steam and gases
Reliable, secure measurement technology - compliance with international Vortex standard ISO 12764
Same accuracy down to Re 10,000 - most linear Vortex meter body
Long-term stability - robust drift-free capacitive sensor
Convenient device wiring - separate connection compartment, various Ethernet options
Safe operation - no need to open the device
Integrated verification - Heartbeat Technology

Technical Specifications

Measuring Principle

Vortex

Measured Variables

Volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature

Accuracy Specifications

Volume flow (liquid)	±0.75%
Volume flow (optional)	±0.65%
Volume flow (steam, gas)	±1.00%
Mass flow (saturated steam)	±1.7% (temperature compensated); ±1.5% (temperature/pressure compensated)
Mass flow (superheated steam, gas)	±1.5% (temperature/pressure compensated); ±1.7% (temperature compensated + external pressure compensation)
Mass flow (liquid)	±0.85%

Measuring Ranges

Liquid	0.2 to 2100 m³/h (0.15 to 1520 ft³/min) depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
Steam, Gas	1.5 to 28000 m³/h (0.9 to 16600 ft³/min) depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)

Operating Conditions

Nominal diameter range	DN 15 to 300 (½ to 12")
Medium temperature range (standard)	-40 to +260 °C (-40 to +500 °F)
Medium temperature range (option)	-200 to +400 °C (-328 to +752 °F)
Max. process pressure	PN 100, Class 600, 20K

Materials & Construction

Measuring tube	1.4408 (CF3M); CX2MW similar to Alloy C22, 2.4602
DSC sensor	1.4404 (316/316L); UNS N06022 similar to Alloy C22, 2.4602
Process connection	1.4404/F316/F316L; 2.4602
Sensor housing material	AlSi10Mg, coated; 1.4408 (CF3M)
Transmitter housing material	AlSi10Mg, coated; 1.4404 (316L)

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, JPN, EAC
Product Safety: CE, C-TICK, EAC, UK Ex
Functional Safety: IEC 61508, applicable per IEC 61511
Marine: ABS, LR, BV, DNV, CCS
Pressure: PED, CRN, AD 2000
Metrological: ISO/IEC 17025, ISO 9001:2015 (Heartbeat Technology)
Materials: 3.1 material, NACE MR0175/MR0103
