Proline t-mass F 300 thermal mass flowmeter

Detalles del producto

Productos:

3 salidas:

Entradas:

Entrada de la situación

Comunicación de Digitaces:

CIERVO, MODBUS RS485

Fuente de alimentación:

CC 24 V

Aprobación de zonas peligrosas:

ATEX, cCSAus, IECEx, NEPSI, JPN, Reino Unido Ex, EAC, KC

Seguridad de productos:

CE, marca C

Resaltar:

Proline t-mass F 300 flowmeter

thermal mass flowmeter with warranty

electromagnetic flow meter for liquids

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Promass S 300 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass P 500 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass Q 300 Coriolis flowmeter

Obtenga el mejor precio

Proline t-mass F 500 thermal mass flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

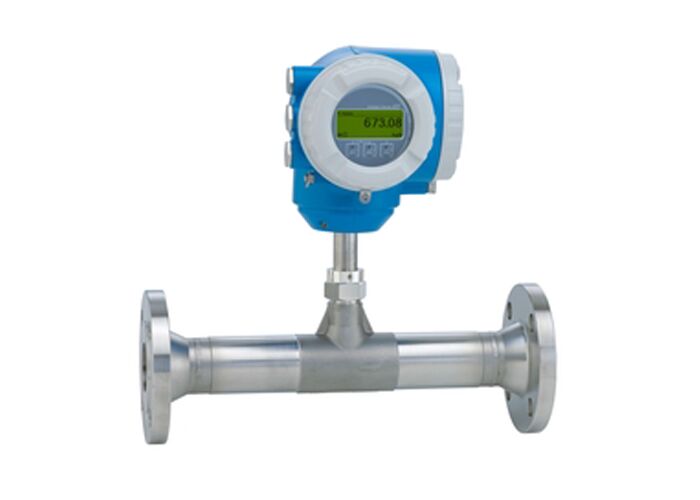

Proline t-mass F 300 Thermal Mass Flowmeter

The Proline t-mass F 300 thermal mass flowmeter features a patented sensor design that provides unprecedented measurement stability in thermal inline mass flow measurement. It compensates in real time for changes in process conditions including temperature, pressure, flow direction, and gas type.

Key Features

Bidirectional measurement with high performance
Patented drift-free sensor with SIL 2 certification
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display capability
Heartbeat Technology for measurement reliability and verification

Technical Specifications

Measuring Range: 0.5 to 3750 kg/h (1.1 to 8250 lb/h)

Max. Measurement Error: Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)

Medium Temperature: -40 °C to +180°C (-40 °F to +356 °F)

Max. Process Pressure: PN40 / Cl. 300 / 20K

Ambient Temperature: -40 to 60°C (-40 to 140°F)

Nominal Diameter: DN 15 to DN 100 (1/2" to 4")

Wetted Materials

Component	Material Specifications
Measuring Tubes (DN 15-50)	Stainless cast steel, CF3M/1.4408
Measuring Tubes (DN 65-100)	Stainless steel, 1.4404 (316/316L)
Flange Connections	Stainless steel, 1.4404 (F316/F316L)
Threaded Connections	Stainless steel, 1.4404 (316/316L)
Sensing Element (Unidirectional)	Stainless steel, 1.4404 (316/316L) or Alloy C22, 2.4602 (UNS N06022)
Sensing Element (Bidirectional)	Stainless steel, 1.4404 (316/316L)
Reverse Flow Detection	Stainless steel, 1.4404 (316/316L)

Electrical & Communication

Power Supply: DC 24V or AC 100 to 240V

Outputs: 3 outputs including 4-20 mA HART, pulse/frequency/switch, and relay

Inputs: Status input and 4-20 mA input

Digital Communication: HART, Modbus RS485

Certifications & Approvals

Hazardous Area: ATEX, cCSAus, IECEx, NEPSI, JPN, UK Ex, EAC, KC
Product Safety: CE, C-tick
Functional Safety: IEC 61508, applicable per IEC 61511
Pressure: PED, CRN
Material: 3.1 material certificate, NACE MR0175/MR0103

Applications

Ideal for measurement of utility and process gases as well as gas mixtures in small line sizes. The thermal measuring principle provides high operable flow range and direct mass flow measurement for various industrial applications.
