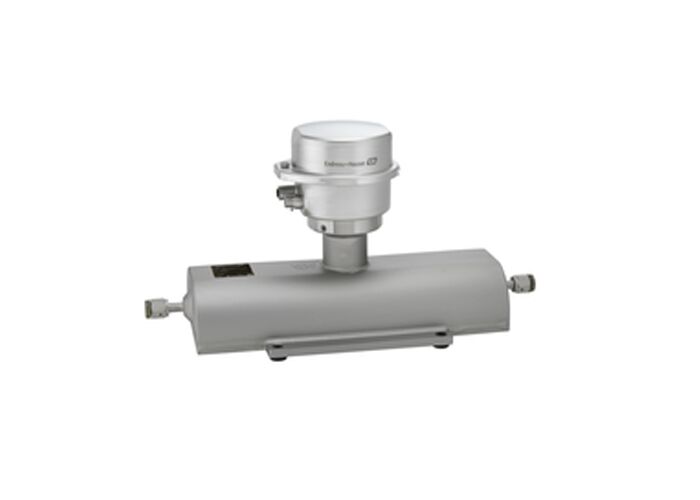

Name: Proline Promass A 100 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolina Promass A 100
Price: 2,540.00 USD
Availability: InStock

En casa > productos > Metro de flujo electromágnetico >

Proline Promass A 100 Coriolis flowmeter

Proline Promass A 100 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Número de modelo:

Prolina Promass A 100

Contacta con nosotros

Solicitar una cita

Proline Promass A 100 Coriolis flowmeter

Detalles del producto

Rango de medición:

0 a 450 kg/h (0 a 16,5 lb/min)

Max. procesar presión:

PN 40, Clase 300, 20K, 400 bar (5800 psi)

Rango de temperatura media:

–50 a +205 °C (–58 a +401 °F)

Resaltar:

Proline Promass A 100 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Promass S 300 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass P 500 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass Q 300 Coriolis flowmeter

Obtenga el mejor precio

Proline t-mass F 500 thermal mass flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

Proline Promass A 100 Coriolis Flowmeter

The single-tube flowmeter for smallest flow quantities with an ultra-compact transmitter, designed for highly accurate measurement of small quantities of liquids and gases in both high and low pressure applications.

Field of Application

Promass A is engineered for system integrators, skid builders, and equipment manufacturers requiring precise measurement in compact installations. Its ultra-compact stainless steel hygienic housing allows placement in even the most space-constrained rigs.

Key Advantages

Measuring principle operates independently of physical fluid properties such as viscosity or density
Accurate measurement of smallest quantities of liquids and gases for continuous process control

Technical Specifications

Nominal Diameter	DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")
Measuring Range	0 to 450 kg/h (0 to 16.5 lb/min)
Max. Process Pressure	PN 40, Class 300, 20K, 400 bar (5800 psi)
Medium Temperature Range	-50 to +205 °C (-58 to +401 °F)
Ambient Temperature Range	Standard: -40 to +60 °C (-40 to +140 °F) Option: -50 to +60 °C (-58 to +140 °F)

Measurement Accuracy

Mass Flow (Liquid)	±0.1 %
Volume Flow (Liquid)	±0.1 %
Mass Flow (Gas)	±0.5 %
Density (Liquid)	±0.0005 g/cm³

Key Benefits

Highest Process Safety: Self-drainable measuring tube design
Fewer Process Measuring Points: Multivariable measurement (flow, density, temperature)
Space-Saving Installation: No inlet/outlet run requirements
Compact Transmitter: Full functionality on the smallest footprint
Time-Saving Operation: Integrated web server for local operation without additional software
Integrated Verification: Heartbeat Technology for continuous monitoring

Materials & Construction

Wetted Materials

Measuring tube: 1.4539 (904L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4539 (904L); Alloy C22, 2.4602 (UNS N06022); 1.4404 (316/316L)

Housing Materials

Sensor: 1.4301 (304), corrosion resistant
Transmitter: Compact: AlSi10Mg, coated; Compact/ultra-compact: 1.4301 (304)

Technical Features

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Degree of Protection

Standard: IP66/67, type 4X enclosure
Option: IP69

Display & Operation

4-line backlit display available (no local operation)
Configuration via web browser and operating tools possible

Communication & Power

Outputs	4-20 mA HART (active) Pulse/frequency/switch output (passive)
Inputs	None
Digital Communication	HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
Power Supply	DC 20 to 30 V

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC
Product Safety: CE, C-Tick, EAC marking
Metrological: Calibration performed on accredited facilities (ISO/IEC 17025), NAMUR
Pressure: CRN
Material: 3.1 material certificate
Hygienic: 3-A, EHEDG, cGMP
