Name: Dosimass Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Coriolis Dosimass
Price: 2,540.00 USD
Availability: InStock

En casa > productos > Metro de flujo electromágnetico >

Dosimass Coriolis flowmeter

Dosimass Coriolis flowmeter with warranty

Coriolis flowmeter for industrial use

Electromagnetic flow meter high accuracy

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Número de modelo:

Coriolis Dosimass

Contacta con nosotros

Solicitar una cita

Detalles del producto

Variables medidos:

Flujo másico, densidad, temperatura, flujo volumétrico.

Rango de medición:

0 a 45 000 kg/h (0 a 1654 lb/min)

Max. procesar presión:

PN 40

Rango de temperatura media:

–40 a +130 °C (–40 a +266 °F)Se permiten 150 °C durante 1 h

Rango de temperatura ambiente:

–20 a +60 °C (–4 a +140 °F)

Resaltar:

Dosimass Coriolis flowmeter with warranty

Coriolis flowmeter for industrial use

Electromagnetic flow meter high accuracy

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Promass S 300 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass P 500 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass Q 300 Coriolis flowmeter

Obtenga el mejor precio

Proline t-mass F 500 thermal mass flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

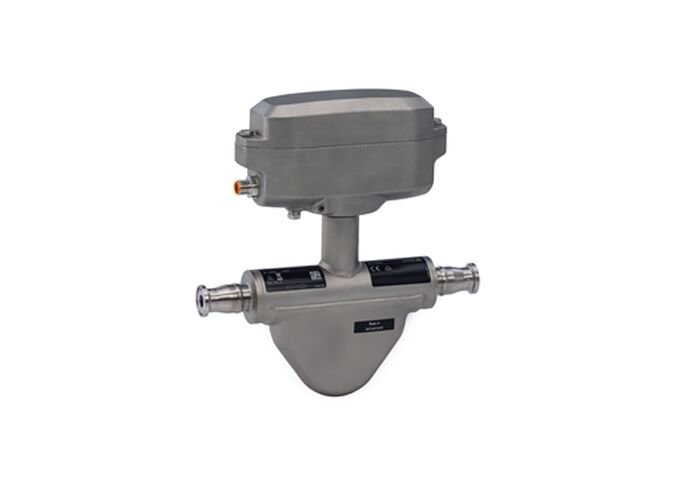

Dosimass Coriolis Flowmeter

The compact sensor with an ultra-compact transmitter for measurement of liquids with diverse properties in continuous process control & batching applications.

Field of Application

Dosimass is designed for filling and bottling applications in Food & Beverage and Life Sciences. In space-constrained applications, Dosimass is the preferred choice for system integrators, skid builders and equipment manufacturers. The flowmeter measures volume and mass flow directly with temperature and density compensation to ensure maximum repeatability, independent of physical fluid properties such as viscosity or density.

Key Benefits

High and stable filling performance with exceptional measuring accuracy and repeatability in shortest filling times
IO-Link enables real-time digital communication for easier commissioning and continuous data availability
Fewer process measuring points through multivariable measurement (flow, density, temperature)
Compact design for optimized machine footprint
Integrated batching functionality for comprehensive filling process management
Global compliance with industry standards: EHEDG, 3-A, FCM, cGMP
SIP and CIP cleanable

Technical Specifications

Measuring Principle

Coriolis

Measured Variables

Mass flow, density, temperature, volume flow

Max. Measurement Error

Mass flow (liquid): ±0.15%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 45,000 kg/h (0 to 1,654 lb/min)

Medium Temperature

-40 to +130 °C (-40 to +266 °F)
150 °C allowed for 1 hour

Max. Process Pressure

PN 40

Ambient Temperature

-20 to +60 °C (-4 to +140 °F)

Nominal Diameter

DN 1 to 40 (¹⁄₂₄ to 1¹⁄₂)

Degree of Protection

IP67, type 4X enclosure

Materials & Construction

Component	Material Specifications
Measuring Tube	1.4435 (316/316L) - DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈) 1.4539 (904L) - DN 8 to 40 mm (³⁄₈ to 1½)
Process Connection	1.4435 (316/316L) - DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈) 1.4539 (904L) - DN 8 to 40 mm (³⁄₈ to 1½)
Sensor Housing	Stainless steel, 1.4404 (316/316L) - DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈) Stainless steel, 1.4301 (304) - DN 8 to 40 mm (³⁄₈ to 1½)
Transmitter Housing	Stainless steel, 1.4409 (CF3M)

Electronics & Communication

Outputs

Pulse/frequency/switch output (passive)

Inputs

None

Digital Communication

Modbus RS485, IO-Link

Power Supply

DC 20 to 30 V

Display/Operation

No local operation
Configuration via operating tools possible

Certifications & Approvals

Hazardous Area: ATEX, UL, UK Ex
Other Approvals: 3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, 3-A
Product Safety: CE
