Name: Flow-X flow computer
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Flujo-X
Price: 2,540.00 USD
Availability: InStock

En casa > productos > Metro de flujo electromágnetico >

Flow-X flow computer

Flow-X electromagnetic flow meter

Flow-X flow computer with warranty

industrial electromagnetic flow meter

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Número de modelo:

Flujo-X

Contacta con nosotros

Solicitar una cita

Detalles del producto

Variables de medición:

conversión de volumen de gas, registro de eventos, registro de parámetros e informes

Número de solicitudes:

Admite hasta 4 recorridos de gas o 2 recorridos de líquido por módulo (Flow-X/M, Flow-X/C)

Conexión eléctrica:

Tensión24 V DC (± 10%), con conexiones redundantesConsumo de corriente:Flujo-X/P0, X/M, X/S: ≤ 0,4 A

Rango de temperatura ambiente:

Flujo-X/S: -40 °C ... +75 °CFlujo-X/C, Flujo-X/P, Flujo-X/R: 0 °C ... +60 °C

Resaltar:

Flow-X electromagnetic flow meter

Flow-X flow computer with warranty

industrial electromagnetic flow meter

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Promass S 300 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass P 500 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass Q 300 Coriolis flowmeter

Obtenga el mejor precio

Proline t-mass F 500 thermal mass flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

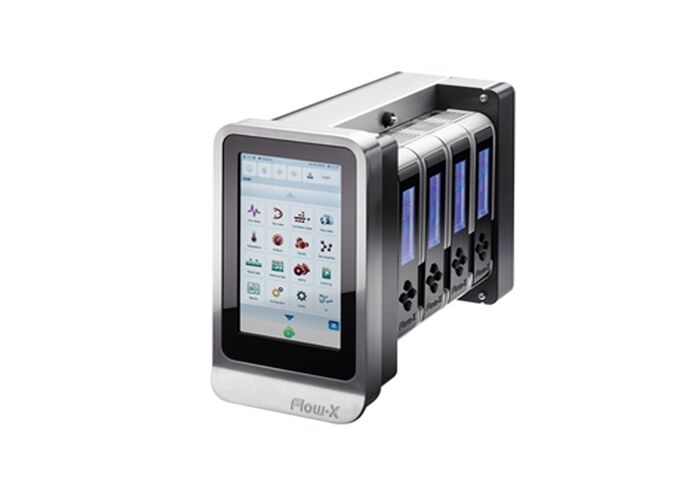

Flow-X Flow Computer

The Flow-X flow computer provides gas volume conversion, event logging, parameter logging, and reports using state-of-the-art technology. Identical modules are combined in different housings, offering multi-stream capabilities for various installation requirements.

Key Applications

Custody transfer gas metering
Natural gas and process gas applications
Integration with FLOWSIC600 ultrasonic gas flowmeters

Device Variants

Flow-X/P: Multi-stream version for 1-4 measuring distances with local touch screen
Flow-X/S: Compact version for smaller installations with one measuring distance
Flow-X/M and Flow-X/C: Modular configurations

Technical Specifications

Inputs

6x Analog Transmitter Inputs:

Input types: 4-20 mA, 0-20 mA, 0-5 V, 1-5 V
Accuracy: 0.002% FS at 21°C, 0.008% at 0-60°C
Long-term stability: 0.01% per year
Resolution: 24 bits

16x Digital Status Inputs:

Resolution: 100ns (10MHz)

Outputs

4x Analog Outputs:

For process outputs and flow/pressure control
Resolution: 14 bits, 0.075% FS

16x Digital Outputs:

Open collector design
Rating: 100mA @24V

System Architecture

CPU and Memory: 800 MHz, 512 MB RAM, 1 GB flash memory
Real-time clock with accuracy better than 1 sec/day
Gold cap for date and time retention
Hardware and software watchdog timer
Mechanical tamper switch for parameter protection

Calculation Standards

Gas Property Calculations:

AGA 5, AGA 8 Part 1, AGA 8 Part 2 (GERG-2008), AGA 10
AGA NX-19, GERG-2008, GERG91mod
GOST 30319.2-1996, GOST 30319.2-2015
GSSSD MR-113, ISO 6976, ISO 12213
S-GERG

Flow Rate Calculations:

AGA 3, AGA 7, AGA 9, AGA 11

Operational Parameters

Parameter	Specification
Number of Applications	Supports up to 4 gas runs or 2 liquid runs per module
Voltage	24 V DC (±10%) with redundant connections
Current Consumption	Flow-X/P0, X/M, X/S: ≤ 0.4 A nominal; ≤ 0.8 A maximal Flow-X/C: ≤ 0.6 A nominal; ≤ 1.0 A maximal
Ambient Temperature	Flow-X/S: -40°C to +75°C Flow-X/C, Flow-X/P, Flow-X/R: 0°C to +60°C

Certifications & Approvals

2014/32/EU Measuring Instruments Directive (MID)
2014/30/EC Electromagnetic Compatibility
2012/19/EU WEEE Directive
2011/65/EU RoHS
OIML R117-1
WELMEC 7.2, 8.3, 8.8
API 21.1
Hazardous Area Approvals (Flow-X/M and X/S only)

Key Benefits

Reduced planning and installation costs through standard configurations
Very accurate volume conversion with multiple calculation cycles per second
High reliability through independent modules with dedicated volume conversion
Easy system extension with 100% software configuration
Reduced service costs with tamper-proof remote maintenance
Cost-efficient integration of multiple streams

Supported Gas Chromatographs

Supports all common gas chromatographs including ABB NGC8200 series, ABB BTU8100, Danalyser, Yamatake HGC, Encal 3000, Angus GQA, Siemens Maxum, and Sitrans.
