Name: KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-BG-M
Price: 5,000.00 USD
Availability: InStock

En casa > productos > Environmental Monitoring >

KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication

Lugar de origen:

Porcelana

Nombre de la marca:

KACISE

Certificación:

Número de modelo:

KQS-BG-M

Contacta con nosotros

Solicitar una cita

KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication

Detalles del producto

Parámetros medidos:

Iluminancia, temperatura, humedad, concentración de CO2

Rango de temperatura:

-20 a 50°C (analógico) / -40 a 100°C (digital)

Rango de humedad:

0-100% RH

Rango de CO2:

0-5000 ppm

Clasificación de protección:

IP65

Exactitud:

Temperatura: ±0,3°C; Humedad: ±5% HR; CO2: ±(50 ppm+5%); Luz: ±4%

Condiciones de pago y envío

Cantidad de orden mínima

1 piezas

Detalles de empaquetado

Cada unidad tiene caja individual, todas las cajas empacadas en paquetes estándar o según solicitud

Tiempo de entrega

5-8 días laborables

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociable

Productos relacionados

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Obtenga el mejor precio

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Obtenga el mejor precio

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Obtenga el mejor precio

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

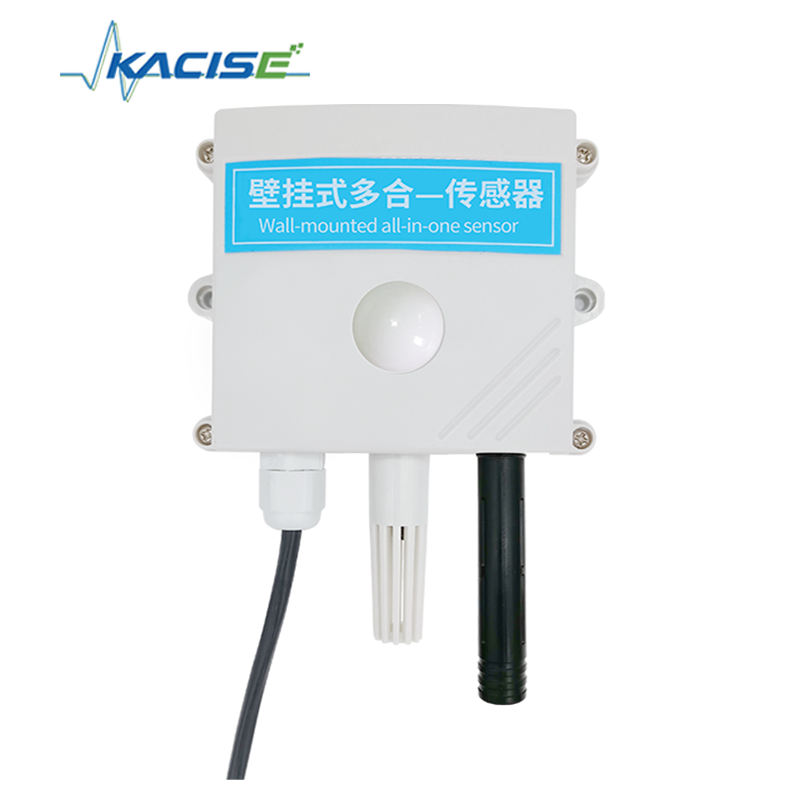

KQS-BG-M Wall-Mounted Multi-Parameter Sensor

The KQS-BG-M wall-mounted multi-parameter sensor is an integrated device designed for measuring environmental parameters such as illuminance, temperature, humidity, and CO2 concentration. It features a high-protection housing with an IP65 rating, offering resistance to rain and snow while maintaining good breathability.

The product adopts an industrial-grade microprocessor chip imported from the United States and a high-precision temperature and humidity sensing chip imported from Switzerland, ensuring excellent reliability, high accuracy, and strong interchangeability. The sensor supports RS485/RS232 communication interfaces and standard Modbus protocol, making it easy to connect with other data acquisition systems. It can also output up to 4 channels of analog signals (current and voltage outputs). Digital outputs support Modbus or ASCII protocols, enabling secondary development with stable performance and easy installation.

Product Features

Factory dual calibration ensures high measurement accuracy
Secondary linear calibration provides stable and reliable data output

Technical Parameters

Item	Specification
Range	Temperature: -20-50°C (analog output) -40-100°C (digital output) Humidity: 0-100% RH CO₂: 0-5000 ppm Light: 0-200,000 Lux (indoor) 0-65,535 Lux (outdoor)
Accuracy	Temperature: ±0.3°C Humidity: ±5% RH CO₂: ±(50 ppm + 5%) Light: ±4%
Resolution	Temperature: 0.1°C Humidity: 0.1% RH CO₂: 1 ppm Light: 1 Lux
Power supply	5 V or 9-30 V wide-voltage optional
Signal output	Current: □ 4-20 mA □ 0-20 mA Voltage: □ 0-2.5 V □ 0-5 V □ 1-5 V Serial: □ RS485 / RS232 optional

Dimensions
