Name: KQS-FS1 Wind Speed Sensor Anemometer with Low Starting Wind Speed ≤ 0.8 m/s Wide Voltage Power Supply and Multiple Signal Output Options
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-FS1
Price: 5,000.00 USD
Availability: InStock

En casa > productos > Environmental Monitoring >

KQS-FS1 Wind Speed Sensor Anemometer with Low Starting Wind Speed ≤ 0.8 m/s Wide Voltage Power Supply and Multiple Signal Output Options

Lugar de origen:

Porcelana

Nombre de la marca:

KACISE

Certificación:

Número de modelo:

KQS-FS1

Contacta con nosotros

Solicitar una cita

KQS-FS1 Wind Speed Sensor Anemometer with Low Starting Wind Speed ≤ 0.8 m/s Wide Voltage Power Supply and Multiple Signal Output Options

Detalles del producto

Rango de medición:

0-45 m/s (salida analógica) / 0-70 m/s (salida digital/pulsos)

Velocidad inicial del viento:

≤ 0,8 m/s

Exactitud:

±(0,5 + 0,02 V)m/s

Resolución:

0.1 m/s

Fuente de alimentación:

Opcional de amplio voltaje de 5 V o 9-30 V CC

Salida de señal:

4-20 mA/0-20 mA, 0-2,5 V/0-5 V/1-5 V, RS485/RS232 opcional

Condiciones de pago y envío

Cantidad de orden mínima

1 piezas

Detalles de empaquetado

Cada unidad tiene caja individual, todas las cajas empacadas en paquetes estándar o según solicitud

Tiempo de entrega

5-8 días laborables

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociable

Productos relacionados

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Obtenga el mejor precio

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Obtenga el mejor precio

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Obtenga el mejor precio

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

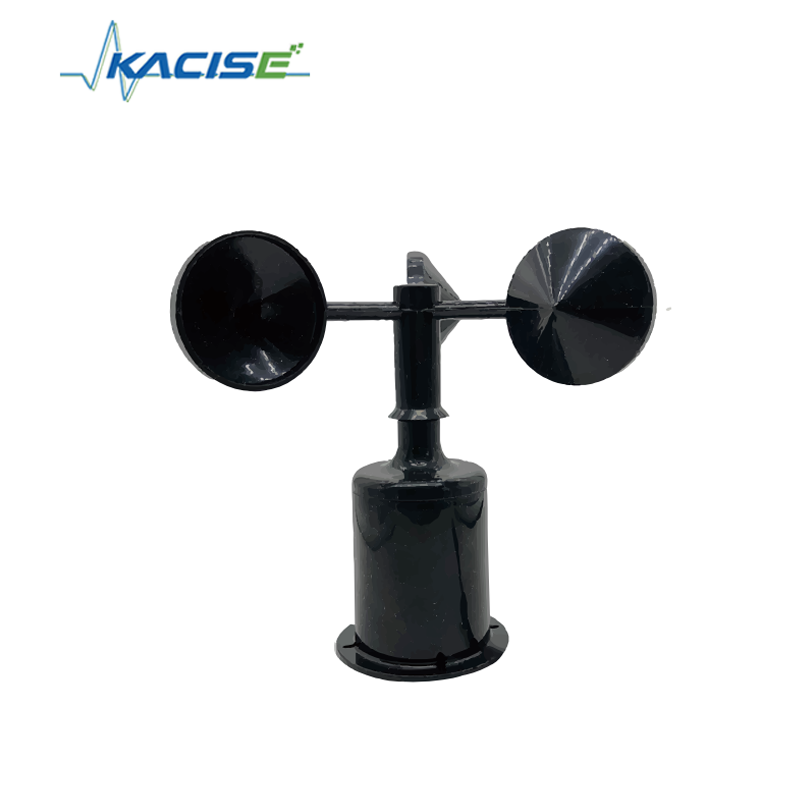

KQS-FS1 Wind Speed Sensor

Product Overview

The KQS-FS1 wind speed sensor adopts a traditional three-cup anemometer structure. The wind cups are made of high-strength ABS material, providing excellent durability and low starting wind speed. The built-in signal processing unit can output corresponding wind speed signals according to user requirements, supporting RS485/RS232 communication, pulse output, voltage output, or current output.

This sensor is widely used in advertising barrier systems, meteorology, oceanography, environmental monitoring, airports, ports, laboratories, agriculture, industry, and transportation applications.

Product Features

Independently patented design and development; each sensor is calibrated in a wind tunnel
Uses high-quality bearings, ensuring low starting wind speed and stable performance
Easy to install, compatible with bottom or side cable outlet mounting

Technical Parameters

Item	Parameter
Measuring range	□ 0-45 m/s (current/voltage output) □ 0-70 m/s (pulse / RS485 / RS232 output)
Starting wind speed	≤ 0.8 m/s
Accuracy	±(0.5 + 0.02V) m/s (V = real-time wind speed)
Resolution	0.1 m/s
Power consumption	0.48 W
Power supply	5V or optional 9-30V wide-voltage supply
Net weight	125 g
Signal output	Current: □ 4-20 mA / □ 0-20 mA Voltage: □ 0-2.5 V / □ 0-5 V / □ 1-5 V Serial: □ RS485 / RS232 optional

Dimensions
