Name: KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-FX1
Price: 5,000.00 USD
Availability: InStock

En casa > productos > Environmental Monitoring >

KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC

Lugar de origen:

Porcelana

Nombre de la marca:

KACISE

Certificación:

Número de modelo:

KQS-FX1

Contacta con nosotros

Solicitar una cita

KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC

Detalles del producto

Rango de medición:

0-359° dirección completa

Velocidad inicial del viento:

≤ 0,8 m/s

Exactitud:

± 3 °

Resolución:

1 °

Fuente de alimentación:

Opcional de amplio voltaje de 5 V o 9-30 V CC

Salida de señal:

4-20 mA/0-20 mA, 0-2,5 V/0-5 V/1-5 V, RS485/RS232 opcional

Condiciones de pago y envío

Cantidad de orden mínima

1 piezas

Detalles de empaquetado

Cada unidad tiene caja individual, todas las cajas empacadas en paquetes estándar o según solicitud

Tiempo de entrega

5-8 días laborables

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociable

Productos relacionados

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Obtenga el mejor precio

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Obtenga el mejor precio

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Obtenga el mejor precio

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

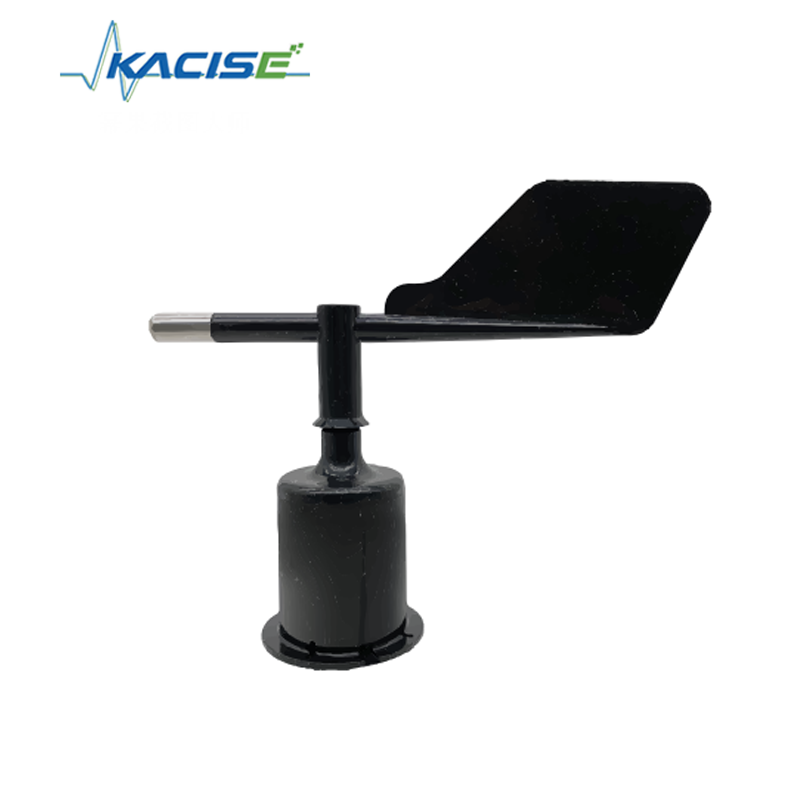

KQS-FX1 Wind Direction Sensor

Wind Direction Sensor KQS-FX1

Product Introduction

The KQS-FX1 is a full 360° wind direction sensor that uses a precision angle sensing element internally. The KQS-FX1-8 eight-direction wind sensor adopts a 4-optocoupler system to determine wind direction. It uses a low-inertia ABS wind vane to ensure quick response to wind direction changes and good dynamic performance. This product features excellent linearity, high accuracy, no dead zone, strong lightning resistance, easy observation, and stable and reliable operation. It is widely used in meteorology, oceanography, environmental monitoring, airports, ports, laboratories, agriculture and industry, transportation, and other fields.

Product Features

Independently patented design; each sensor is wind-tunnel calibrated
Uses high-quality bearings, low starting wind speed, and stable performance
Easy installation; supports both bottom and side cable outlet configurations

Technical Parameters

Item	Specification
Range	0-45 m/s (current/voltage output) 0-70 m/s (pulse, RS485, RS232 output)
Starting wind speed	≤ 0.8 m/s
Accuracy	±(0.5 + 0.02V) m/s (V = real-time wind speed value)
Resolution	0.1 m/s
Power consumption	0.48 W
Power supply	5 V or 9-30 V wide-voltage optional
Net weight	125 g
Signal output	Current: 4-20 mA/0-20 mA Voltage: 0-2.5 V / 0-5 V /1-5 V Serial port: RS485 / RS232 optional
Cable length	Standard: 0.8 m Others:

Dimension
