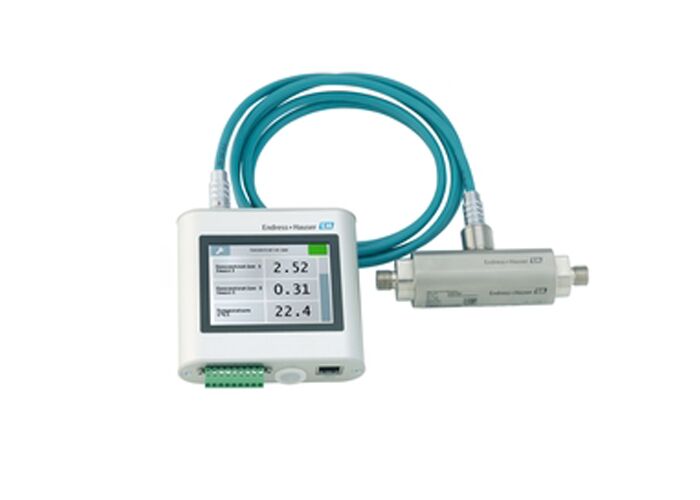

Teqwave F – Ultrasonic concentration meter

Ultrasonic concentration meter Teqwave F

Ultrasonic flow meter with warranty

Teqwave F concentration measurement device

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Contacta con nosotros

Solicitar una cita

Teqwave F – Ultrasonic concentration meter

Detalles del producto

Max. procesar presión:

máx. 16 bar a 20 °C (232 psi a 68 °F)

Rango de temperatura media:

0 a 100 °C (32 a 212 °F)

Rango de temperatura ambiente:

0 a 50°C (32 a 122°F)

Sensor que contiene el material:

Acero inoxidable V4A 1.4571 (316 Ti)

Transmisor que contiene el material:

Aluminio anodizado, Vidrio

Grado de protección:

Sensor: IP68 (con cable enchufado)

Resaltar:

Ultrasonic concentration meter Teqwave F

Ultrasonic flow meter with warranty

Teqwave F concentration measurement device

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Prosonic Flow E 100 ultrasonic flowmeter

Obtenga el mejor precio

Proline Prosonic Flow G 300 ultrasonic flowmeter

Obtenga el mejor precio

Proline Prosonic Flow G 500 ultrasonic flowmeter

Obtenga el mejor precio

Proline Prosonic Flow I 400 ultrasonic flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

Teqwave F – Ultrasonic Concentration Meter

Smart, flexible inline measuring device designed specifically for your industrial process requirements.

Overview

The Teqwave F ultrasonic concentration meter provides real-time liquid analysis in pipes, delivering precise in situ concentration measurement for industrial applications.

Key Benefits

Easy and efficient real-time in situ liquid analysis
Full transparency with constant monitoring of product quality without sampling
Highest process safety through robust, maintenance-free sensor design
Cost-saving with fewer measuring points due to multivariable measurement
Customized usage with innovative application concept for changing measuring tasks
Simplified process control with user-friendly operation and clear status visualization
Local data backup with integrated storage for measured values up to 7.5 years

Technical Specifications

Parameter	Specification
Measuring Principle	Ultrasonic concentration
Nominal Diameter Range	DN 8 (1/4") to DN 25 (1")
Measured Variables	Concentration, sound velocity, temperature, acoustic density, dispersion
Max. Measurement Error	Acoustic density: ±0.01g/cm³ Temperature: ±0.5K Sound velocity: ±2m/s
Measuring Range	Concentration: 0 to 100% Sound velocity: 600 to 2000 m/s Temperature: 0 to +100°C (32 to +212°F) Acoustic Density: 0.7 to 1.5 g/cm³
Process Conditions	Max. process pressure: 16 bar at 20°C (232 psi at 68°F) Medium temperature: 0 to 100°C (32 to 212°F) Ambient temperature: 0 to 50°C (32 to 122°F)
Wetted Materials	Stainless steel 1.4571 (316 Ti)
Housing Materials	Sensor: Stainless steel V4A 1.4571 (316 Ti) Transmitter: Anodized aluminium, Glass
Degree of Protection	Sensor: IP68 (with plugged-in cable) Transmitter: IP40

Device Features

Sensor Features

Full-bore design without pressure loss
Robust, maintenance-free operation
Multivariable measurement capability

Transmitter Features

Industry-compliant DIN rail installation
3.5" TFT color touch screen or LED indication
4-20 mA, Modbus TCP outputs
Integrated data storage for measured values

Electrical Specifications

Parameter	Specification
Display/Operation	LED status indication, TFT color touch display
Outputs	Modbus TCP, Relay (AC 50V, DC30V 1A), 4-20mA/0 to 10V Analog output
Inputs	2 digital inputs for display and output configuration
Power Supply	DC 24V ±20%

Certifications & Approvals

CE, UKCA, RCM - Approved for non-hazardous areas

Applications

Ideal for real-time liquid analysis in pipes, particularly in skids. Perfect for equipment manufacturers and end customers requiring accurate in situ concentration measurement with flexible application range definition.
