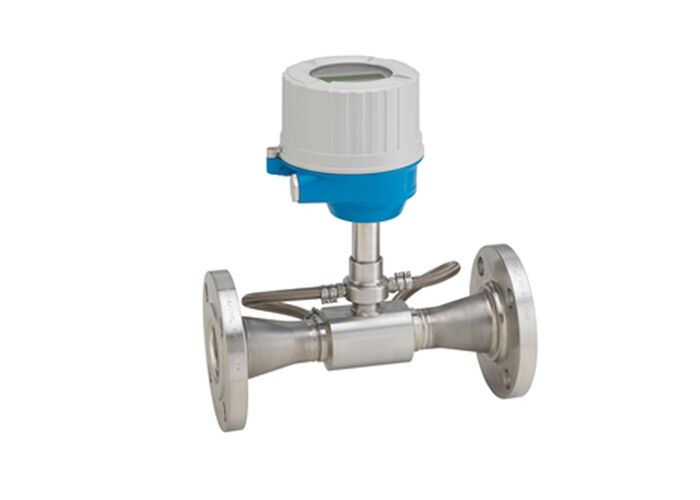

Proline Prosonic Flow E 100 ultrasonic flowmeter

Prosonic Flow E 100 ultrasonic flowmeter

ultrasonic flow meter with warranty

Proline ultrasonic flow meter

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Contacta con nosotros

Solicitar una cita

Proline Prosonic Flow E 100 ultrasonic flowmeter

Detalles del producto

Rango de medición:

0,025 a 5 m/s (0,02 a 16,4 pies/s)

Max. procesar presión:

PN 25 / Clase ASME. 150

Rango de temperatura media:

0 a 150° (17,8 a 302 °F)

Rango de temperatura ambiente:

-20 a 60 ° C (-4 a 140 ° F)

Sensor que contiene el material:

Acero inoxidable

Transmisor que contiene el material:

Compacto:AlSi10Mg, revestidoAcero inoxidable, 1.4301

Resaltar:

Prosonic Flow E 100 ultrasonic flowmeter

ultrasonic flow meter with warranty

Proline ultrasonic flow meter

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Prosonic Flow E 100 ultrasonic flowmeter

Obtenga el mejor precio

Proline Prosonic Flow G 300 ultrasonic flowmeter

Obtenga el mejor precio

Proline Prosonic Flow G 500 ultrasonic flowmeter

Obtenga el mejor precio

Proline Prosonic Flow I 400 ultrasonic flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

Proline Prosonic Flow E 100 Ultrasonic Flowmeter

The Prosonic Flow E 100 provides economical and accurate bidirectional flow measurement across all industries. With integrated temperature measurement, this multivariable flowmeter delivers significant additional value for your plant operations.

Key Applications

Ideal for measuring demineralized water in utilities, particularly in boiler condensate return lines. The ultrasonic measuring principle operates independently of pressure, density, temperature, and conductivity.

Technical Specifications

Measurement Error (Volume Flow) ±0.5% o.r. ±0.02% o.f.s. (0.5-10 m/s)
±0.07% o.f.s. (<0.5 m/s)

Measuring Range 0.025-5 m/s (0.02-16.4 ft/s)
0-6360 dm³/min (0-1680 gal/min)

Medium Temperature 0-150°C (17.8-302°F)

Max Process Pressure PN 25 / ASME Cl. 150

Ambient Temperature -20 to 60°C (-4 to 140°F)

Nominal Diameter DN 50 to 150 (2" to 6")

Key Benefits

Long-term stability with reliable, robust sensor design
Multivariable capability reduces additional measuring points
High turndown ratio (200:1) for dependable flow measurement
Integrated web server enables time-saving local operation
Extended calibration intervals with Heartbeat Technology
Easy commissioning with brief parameter explanations

Device Features

Sensor Features

Measurement accuracy: ±0.5% (flow) or EN 1434 Cl. 2, ±2.0°C (±3.6°F) temperature
Process temperatures up to 150°C (302°F)
Entire meter housing constructed from stainless steel

Transmitter Features

4-20 mA HART, pulse/frequency output
Local display available for reading and monitoring
Robust transmitter housing design
Configuration via web browser and operating tools

Materials & Construction

Component	Materials
Measuring Tube	1.4301 (F304)
Process Connection	1.4571; 1.4404 (F316L); 1.0038 (S235JR); 1.4306 (F304L); 1.4307 (F304L); A105
Sensor Housing	Stainless Steel
Transmitter Housing	Compact: AlSi10Mg, coated / Stainless steel, 1.4301

Certifications & Approvals

Product Safety CE, C-Tick, EAC marking

Metrological ISO/IEC 17025, EN 1434 Class 2, ISO 9001:2015

Pressure PED

Material 3.1 material certificate

Degree of Protection IP66/67, Type 4X (standard)
IP20, Type 1 (opened housing)

Electrical Specifications

Power Supply DC 19.2 to 28.8 V

Outputs 4-20 mA HART (active)
Pulse/frequency/switch output (passive)

Inputs None

Hazardous Area None
