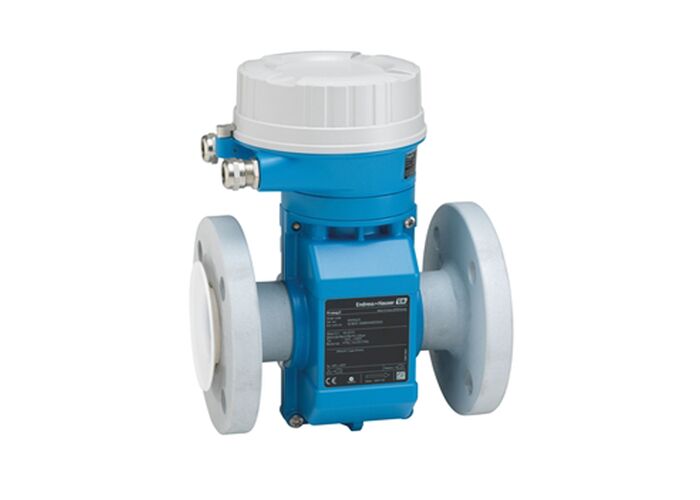

Name: Proline Promag E 100 electromagnetic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promag E 100
Price: 2,540.00 USD
Availability: InStock

En casa > productos > Metro de flujo electromágnetico >

Proline Promag E 100 electromagnetic flowmeter

Proline Promag E 100 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Número de modelo:

Proline Promag E 100

Contacta con nosotros

Solicitar una cita

Proline Promag E 100 electromagnetic flowmeter

Detalles del producto

Rango de medición:

4 dm³/min a 9600 m³/h (1 a 44 000 gal/min)

Max. procesar presión:

PN 40, clase 150, 20K

Transmisor que contiene el material:

AlSi10Mg, cubierto

Grado de protección:

IP67, carcasa tipo 4X

Resaltar:

Proline Promag E 100 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Promass S 300 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass P 500 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass Q 300 Coriolis flowmeter

Obtenga el mejor precio

Proline t-mass F 500 thermal mass flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

Proline Promag E 100 Electromagnetic Flowmeter

The economical flowmeter with an ultra-compact transmitter. Fully suitable for basic applications in the chemical and process industry.

Key Features

Sensor Features

Cost-effective sensor - ideal solution for basic requirements
Energy-saving flow measurement - no pressure loss due to cross section constriction
Maintenance-free - no moving parts
Nominal diameter: max. DN 600 (24")
Ex approvals for Zone 2
Liner made of PTFE

Transmitter Features

Space-saving transmitter - full functionality on the smallest footprint
Time-saving local operation without additional software and hardware - integrated web server
Integrated verification - Heartbeat Technology
Robust, ultra-compact transmitter housing
Local display available

Technical Specifications

Nominal Diameter Range	DN 15 to 600 (½" to 24")
Wetted Materials	Liner: PTFE Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum
Measured Variables	Volume flow, conductivity, mass flow
Max. Measurement Error	Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Measuring Range	4 dm³/min to 9600 m³/h (1 to 44,000 gal/min)
Max. Process Pressure	PN 40, Class 150, 20K
Medium Temperature Range	-10 to +110 °C (+14 to +230 °F)
Ambient Temperature Range	-10 to +60 °C (+14 to +140 °F)
Sensor Housing Material	DN 15 to 300 (½" to 12"): AlSi10Mg, coated DN 350 to 600 (14" to 24"): Carbon steel with protective varnish
Transmitter Housing Material	AlSi10Mg, coated
Degree of Protection	IP67, type 4X enclosure

Electrical & Communication

Display/Operation	4-line backlit display available (no local operation) Configuration via web browser and operating tools possible
Outputs	4-20 mA HART (active) Pulse/frequency/switch output (passive)
Inputs	None
Digital Communication	HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET
Power Supply	DC 20 to 30 V

Certifications & Approvals

Hazardous Area Approvals	ATEX, IECEx, cCSAus, INMETRO, EAC
Product Safety	CE, C-Tick
Metrological Approvals	Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with requirements for measurement traceability according to ISO 9001:2015
Pressure Approvals	PED
Material Certificates	3.1 material

Measuring Principle

Electromagnetic - The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

Key Benefits

Cost-Effective - Ideal solution for basic requirements

Energy-Saving - No pressure loss due to cross-section constriction

Maintenance-Free - No moving parts

Space-Saving - Full functionality on the smallest footprint

Time-Saving - Local operation without additional software and hardware

Integrated Verification - Heartbeat Technology ensures compliance and process safety
