Dosimag electromagnetic flowmeter

Dosimag electromagnetic flow meter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Contacta con nosotros

Solicitar una cita

Detalles del producto

Error de medida del máximo:

±0,25 % o ± 1 a 4 m/s (3,3 a 13 pies/s)

Rango de medición:

0,14 a 1,66 l/s (0,035 a 0,44 gal/s)

Rango de temperatura media:

Material del sello EPDM: –20 a +130 °C (–4 a +266 °F)Material del sello Silicona: –20 a +130 °C (–4

Max. procesar presión:

PN 16

Materiales húmedosRevestimiento::

Electrodos PFA: 1,4435 (316L); Aleación C22, 2.4602 (UNS N06022), tantalio, platino

Transmisor que contiene el material:

1.4404 (316/316L)

Resaltar:

Dosimag electromagnetic flow meter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Promass S 300 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass P 500 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass Q 300 Coriolis flowmeter

Obtenga el mejor precio

Proline t-mass F 500 thermal mass flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

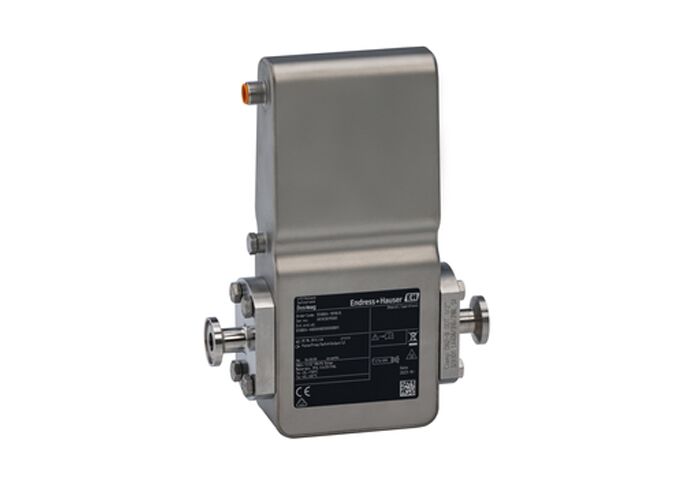

Dosimag Electromagnetic Flowmeter

Flowmeter with hygienic design, highest repeatability and an ultra-compact sensor for demanding dosing and filling applications.

Field of Application

Dosimag is designed for demanding filling and bottling applications with conductive liquids in Food & Beverage and Life Sciences. In applications where space is limited, Dosimag is the preferred choice for system integrators, skid builders and equipment manufacturers.

Measuring Principle

Electromagnetic - measures volume directly. The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

Key Benefits

High and stable filling performance with high measuring accuracy and repeatability in shortest filling times
IO-Link allows real-time digital communication for easier commissioning and continuous data availability
Compact design for optimized machine footprint
Integrated batching functionality - filling process management solved by the flowmeter
Automatic recovery of data for servicing
Global compliance with industry standards - EHEDG, 3-A, FCM, cGMP
SIP and CIP cleanable

Electronics Versions

Pulse/frequency/status version for easy and economical use in filling applications
Intelligent pulse version with IO-Link provides continuous digital communication
Integrated batching version with Dynamic Drip Correction over Modbus RTU for advanced filling control

Technical Specifications

Specification	Details
Nominal Diameter Range	DN 4 to 25 (¹⁄₈ to 1)
Max. Measurement Error	±0.25 % o.r. ± 1 to 4 m/s (3.3 to 13 ft/s)
Measuring Range	0.14 to 1.66 l/s (0.035 to 0.44 gal/s)
Max. Process Pressure	PN 16
Medium Temperature Range	Seal material EPDM: -20 to +130 °C (-4 to +266 °F) Seal material Silicone: -20 to +130 °C (-4 to +266 °F) Seal material Viton: 0 to +150 °C (+32 to +302 °F)
Ambient Temperature Range	-40 to +60 °C (-40 to +140 °F)
Wetted Materials	Liner: PFA Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022), Tantalum, Platinum
Housing Material	1.4404 (316/316L) - Sensor and Transmitter
Degree of Protection	IP66/67, type 4X enclosure
Display/Operation	No local operation - Configuration via operating tools possible
Outputs	Pulse/frequency/switch output (passive)
Digital Communication	Modbus RS485, IO-Link
Power Supply	DC 20 to 30 V

Approvals and Certifications

Hazardous Area: ATEX, UL, UK Ex
Product Safety: CE
Metrological: Calibration performed on accredited calibration facilities (acc.to ISO/IEC 17025), NTEP
Material: 3.1 material certificate
Hygienic: 3-A, EHEDG, seals acc. to FDA

Sensor Features

High process safety with high measuring accuracy and repeatability
Energy-saving flow measurement - no pressure loss due to cross section constriction
Maintenance-free - no moving parts
Wetted materials CIP, SIP cleanable
Measuring device conform to FDA

Transmitter Features

Versatile and time-saving wiring - plug connector
Industry-optimized - ultra-compact design
For hygienic requirements - stainless steel housing
Pulse/frequency/switch output, Modbus RS485
Custody transfer approvals (MID, NTEP)
Excellent, easily cleanable transmitter
