Name: Deltabar PMD75B - differential pressure transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: El valor de las emisiones de gases de efecto invernadero es el siguiente:
Price: 152.00 USD
Availability: InStock

En casa > productos > Sensor de presión de precisión >

Deltabar PMD75B - differential pressure transmitter

Deltabar PMD75B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD75B

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Número de modelo:

El valor de las emisiones de gases de efecto invernadero es el siguiente:

Contacta con nosotros

Solicitar una cita

Deltabar PMD75B - differential pressure transmitter

Detalles del producto

Exactitud:

:hasta 0,075 %Platino:hasta 0,055 %

Rango de medición:

10 mbar...40 bar(0,15 psi...600 psi)

Temperatura del proceso:

-40 ° C ...+110 ° C (-40 ° F ...+230 ° F)

Rango de temperatura media:

-40°C...+110°C(-40°F...+230°F)

Rango de medición de presión:

10 mbar... 40 bar (0,15 psi... 600 psi)

Piezas mojadas principales:

316L, aleación C

Resaltar:

Deltabar PMD75B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD75B

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Deltabar PMD55B - differential pressure transmitter

Obtenga el mejor precio

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

Obtenga el mejor precio

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Obtenga el mejor precio

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

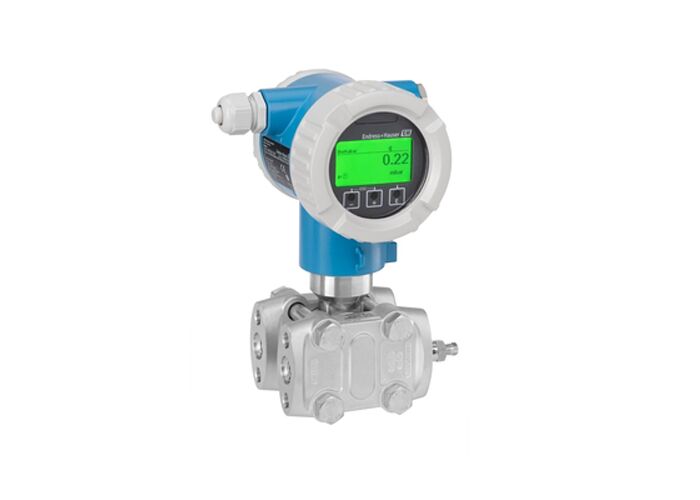

Deltabar PMD75B Differential Pressure Transmitter

The Deltabar PMD75B represents the latest generation of differential pressure transmitters, offering robust construction and intuitive operation both locally and remotely. This advanced instrument supports wireless control via mobile app using secure Bluetooth connectivity.

Key Specifications

Accuracy

Standard: up to 0.075%
Platinum: up to 0.055%

Measuring Range

10 mbar...40 bar (0.15 psi...600 psi)

Process Temperature

-40°C...110°C (-40°F...230°F)

Pressure Range

10 mbar...40 bar (0.15 psi...600 psi)

Static Pressure

Up to 250 bar (3750 psi)

Wetted Materials

316L, AlloyC

Field of Application

This transmitter is designed for differential pressure monitoring in liquids or gases. The intuitive software includes guided wizards for setup and proof testing, minimizing operational errors and supporting condition-based maintenance to significantly improve technical service efficiency.

Key Benefits

Wireless device control in process areas using SmartBlue App without process interruption
Enhanced safety by reducing on-site accidents and protecting equipment in hard-to-reach areas
Reduced systematic failures with error-free SIL commissioning and guided proof testing

Technical Specifications

Parameter	Specification
Measuring Principle	Differential Pressure
Long Term Stability	0.05% of URL/year 0.13% of URL/5 years 0.23% of URL/10 years
Ambient Temperature	-40°C...85°C (-40°F...185°F)
Process Pressure Limit	250 bar (3750 psi)
Process Connection	NPT 1/4-18, RC1/4
Communication	4...20 mA HART, PROFINET with Ethernet-APL, Bluetooth® wireless technology (optional)

Special Features

Bluetooth® operation and maintenance with SmartBlue App, RFID TAG for easy identification, and plug-and-play functionality for simplified integration.

Certifications & Approvals

ATEX, CSA, IECEx, JPN Ex, KC, INMETRO, NEPSI, UK Ex
Safety: SIL
Design: EN 10204-3.1, NACE MR0175, NACE MR0103, AD2000
Drinking Water: NSF, KTW

Application Limits

None - suitable for a wide range of industrial applications.
