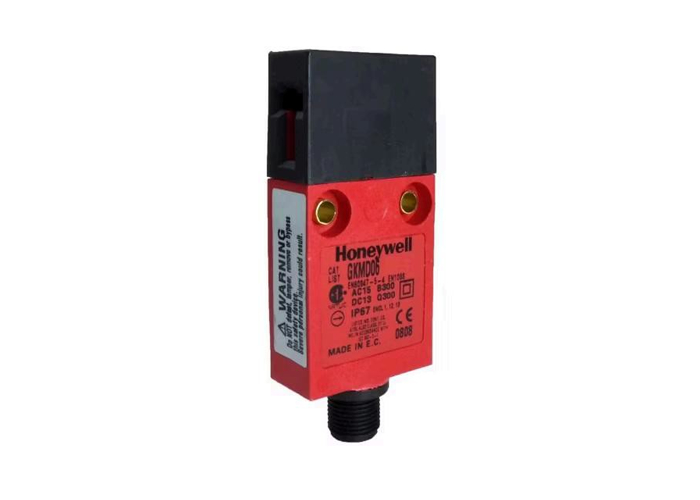

Name: Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Serie GKM
Price: 152.00 USD
Availability: InStock

En casa > productos > Sensor de presión de precisión >

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

SIL3 Capable Key-Operated Safety Interlock Switch

IP66/IP67 Rated GKM Series Switch

NEMA 1

12 13 Miniature Safety Switch

Nombre de la marca:

Honeywell

Número de modelo:

Serie GKM

Contacta con nosotros

Solicitar una cita

Detalles del producto

Categoría de uso:

AC-15, B300; DC-13, Q300

Opciones de contacto/cambio¹:

BBM de acción lenta 1NC/1NO, acción lenta 2NC

Diseño de contacto:

Doble rotura, eléctricamente separada (Zb)

Material de contacto:

Aleación de plata (estándar), chapada en oro (aplicaciones de baja energía)

Calificaciones eléctricas:

Ver Tabla 2

Resaltar:

SIL3 Capable Key-Operated Safety Interlock Switch

IP66/IP67 Rated GKM Series Switch

NEMA 1

12 13 Miniature Safety Switch

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 días laborables

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Obtenga el mejor precio

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Obtenga el mejor precio

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Obtenga el mejor precio

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Obtenga el mejor precio

Contacta con nosotros

86--17719566736

Contacta ahora

Descripción del producto

Honeywell GKM Series Most compact key-operated product

UL, CE, SIL3. IP66/IP67. NEMA 1, 12, 13. Cabled or connector options

Product Description

The MICRO SWITCH GKM Series is Honeywell's miniature product line offering one of the smallest key-op switches available. GKM has daisy-chain capability to reduce installation and down time. Pre-leaded versions allow for rapid fit, easy cable routing and function testing, potentially cutting costs dramatically in OEM applications.

Per safety code EN 60954-1, components used alone comply as a Category 1. By using components in conjunction with other safety switches and modules, it is possible to construct comprehensive protection schemes with Category 2, 3, or 4 compliance. Simple upgrade guarding solutions are available for end-user applications.

Features

Red switch body for easy safety recognition
Common 22 mm mounting centers which accept M4 or #8 mounting hardware
Prewired cable or M12 connector for electrical termination
Positive opening action of normally closed contacts to EN/IEC 60947-5-1-3 specification
Switch chamber IP67 environmentally sealed for indoor or outdoor applications
CE and UL certifications
Designed and agency evaluated for safety functions up to and including a SIL3 level

Potential Applications

Safety interlock for small doors and apertures on machinery
Safety interlock for multiple doors on machinery with daisy chain option (twin connectors)

Differentiation

Miniature package size of 34 mm L x 16 mm W x 70 mm H
Switch design with dual entry (side or top) for actuator key
Daisy-chain capability for monitoring multiple gates on machinery
Rigid or flexible stainless steel actuator keys

Technical Specifications

Characteristic	Parameter
Description	Dual entry key-operated safety interlock switch
Agency certifications	CE, DOC 141 (EN60947-1 and EN 60947-5-1) cULus, UL508 (File E37138) SIRA, Functional Safety Certificate (IEC 61508-2:2010)
Housing material	Red glass-filled polyester body, black glass-filled polyamide actuator housing
Actuator key material	Stainless steel
Electrical connection	Side or bottom exit cable (UL rated 105 °C with PVC jacket and cores four conductor 0.5 mm², 20 AWG). Side or bottom exit integral M12 Micro 4-pin dc-style connector, Side and bottom exit (twin connectors) integral M12 Micro 4-pin dc style connectors for daisy chaining and monitoring multiple doors
Contact/switch options	1NC/1NO slow action BBM, 2NC slow action
Contact design	Double break, electrically separated (Zb)
Contact material	Silver alloy (standard), gold-plated (low energy applications)
Utilization category	AC-15, B300; DC-13, Q300
Rated operational voltage (Ue)	240 Vac, 250 Vdc
Rated operational current (Ie)	1.5 A, 0.27 A
Thermal current (Ith)	5 A, GKME Series 2 A
Rated insulation (Ui)	500 V
Rated impulse withstand voltage (Uimp)	2500 V
Short circuit protection device (SCPD)	Class RK5 fuse, rated at 4.5A
Pollution degree	3
Environmental sealing	IP 66/67, GKME Series (twin connectors) IP66 per EN60529; NEMA 1, 12, 13
Operating temperature	-25 °C to 85 °C (-13 °F to 185 °F)
Shock	50 G per IEC 60068-2-27
Vibration	10 G per IEC 60068-2-6
MCTF (Mechanical life)	>1,000,000 cycles with single-sided confidence limit of 95%
MCTF (Electrical life)	32,000 cycles
SIL Capability	SIL3 capable with HFT=1, SIL2 capable with HFT=0 with reference to IEC 61508-2:2010 Functional Safety
Proof test interval	1 year

All normally closed contacts are positive opening

HFT (Hardware Fault Tolerance)

Electrical Ratings

Electrical Ratings for Body Style A, B, C, D
Standard Silver Contacts	Gold Plate Contacts
AC	DC
Ith = 5 A 1 V, 10 mA min. 50 V, 100 mA max.	30 Vdc, 2 A max. Ith = 2 A

Electrical Ratings for Body Style E (Twin Conn.)
Standard Silver Contacts	Gold Plate Contacts
1 Vdc, 10 mA min. 30 Vdc, 100 mA max. Ith = 2 A	B300
AC15	Q300
DC13	Ue
Ie	Volts
Amps	120
3	125
0.55	240
1.5	250
0.27
