Name: Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Modelo A-105
Price: 152.00 USD
Availability: InStock

En casa > productos > Sensor de presión de precisión >

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

100 psi to 15

000 psi Pressure Transducer

0.50% Full-Scale Accuracy Pressure Transducer

Nombre de la marca:

Honeywell

Número de modelo:

Modelo A-105

Contacta con nosotros

Solicitar una cita

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

Detalles del producto

Resaltar:

100 psi to 15

000 psi Pressure Transducer

0.50% Full-Scale Accuracy Pressure Transducer

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 días de trabajo

Condiciones de pago

L/C, D/A, D/P, T/T, Western Union, Moneygram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage

Obtenga el mejor precio

Honeywell Model DS Digital Pressure Transducer with 0.1% Accuracy 1200 Hz Analog Response and 380 Readings/Second

Obtenga el mejor precio

Honeywell Model Z Pressure Transducer with 0.25% Accuracy 0.5 to 60,000 psig/a Range and Stainless Steel Construction

Obtenga el mejor precio

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

Obtenga el mejor precio

Contacta con nosotros

86--17719566736

Contacta ahora

Descripción del producto

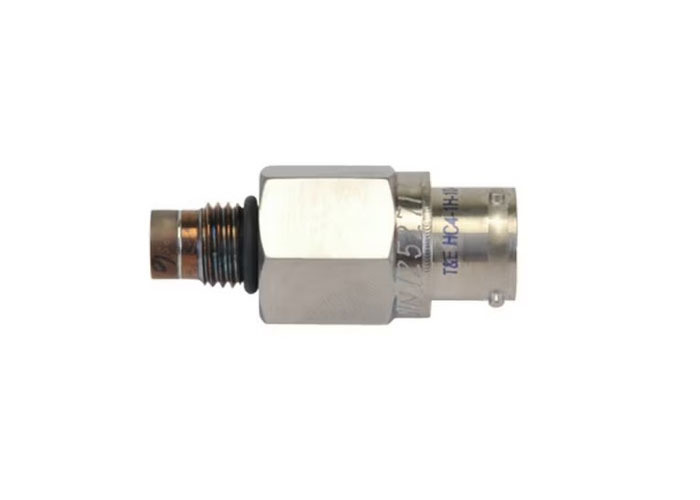

Honeywell Model A-105 PRESSURE TRANSDUCERS

Flush diaphragm pressure transducers. 100 psi to 15,000 psi. 0.50% full-scale accuracy.

The Model A-105 gauge pressure transducers feature a unitized 17-4 PH stainless steel, wetted diaphragm construction. This design combines a thin diaphragm with heavy sidewalls made from a single piece of stainless steel, offering both ruggedness and sensitivity for low pressure measurement.

Available in pressure ranges from 100 psig to 15,000 psig, these transducers are suitable for corrosive fluid environments. The Model A-105 features welded electrical connectors integrated into the transducer body, making it ideal for applications involving rough handling or requiring an all-welded, stainless steel transducer. All units incorporate four active bonded strain gauges arranged in a Wheatstone-bridge configuration.

Key Features

100 psig to 15000 psig range
Flush mount design
No dead volume
Miniature footprint
Stainless steel construction
CE approved

Industry Applications

Industry
Energy
Life Sciences
Manufacturing
