Name: Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWD120
Price: 5,000.00 USD
Availability: InStock

En casa > productos > sensor de la calidad del agua >

Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

1%~3% Accuracy Ultrasonic Sludge Level Meter

5mm Resolution Sludge Level Sensor

4~20mA Output Ultrasonic Level Meter

Lugar de origen:

PORCELANA

Nombre de la marca:

kacise

Certificación:

Número de modelo:

KWD120

Contacta con nosotros

Solicitar una cita

Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

Detalles del producto

Precisión de la medición:

1% a 3%

Resolución:

5 mm o 0,5% (el más grande)

Mostrar:

Display LCD chino

Salida analógica:

4 ~ 20MA/510Ω CARGA

Salida de retransmisión:

AC 250V/5A de 2 vías o DC 30V/5A, estado programable

Resaltar:

1%~3% Accuracy Ultrasonic Sludge Level Meter

5mm Resolution Sludge Level Sensor

4~20mA Output Ultrasonic Level Meter

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 días de trabajo

Condiciones de pago

L/C, D/A, D/P, T/T, Western Union, Moneygram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenga el mejor precio

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenga el mejor precio

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenga el mejor precio

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenga el mejor precio

Contacta con nosotros

86--17719566736

Contacta ahora

Descripción del producto

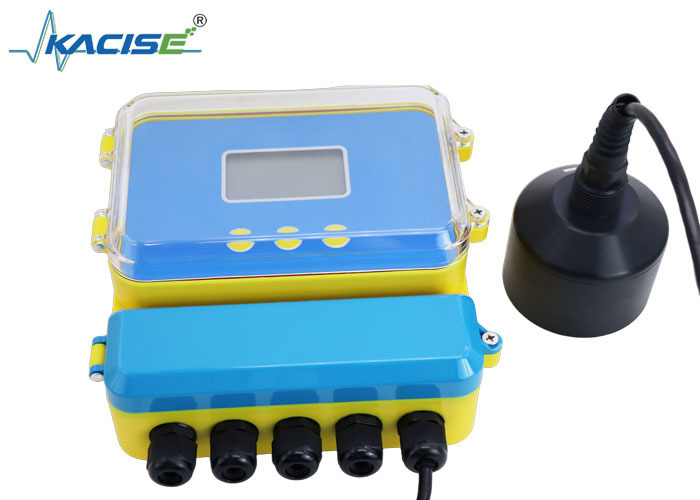

KWD120 Split-type Ultrasonic Sludge Level Meter

Introduction

The KWD120 Ultrasonic Depth Sounder is a reliable, cost-effective level measurement instrument designed for sludge and liquid applications. This contact-type device measures underwater distance through liquid propagation, offering easy installation and maintenance.

Technical Parameters

Function	Split type
Range	Standard measuring ranges: 5m, 10m, 15m, 20m. Customizable up to 70m or special ranges
Measurement Accuracy	1%-3%
Resolution	5mm or 0.5% (whichever is larger)
Display	Chinese LCD display
Analog Output	4-20mA/510Ω load
Relay Output	2-way AC 250V/5A or DC 30V/5A, programmable status
Power Supply	Standard 220V AC ±15% 50Hz, Optional 24VDC 120mA, Custom 12VDC or battery power
Ambient Temperature	Display: -20°C to +60°C, Probe: -20°C to +80°C
Communication	Optional 485, 232 communication (manufacturer protocol)
Protection Level	Display: IP65, Probe: IP68
Probe Cable	Standard 10m, customizable up to 100m (without electromagnetic interference)
Power Consumption (24V)	mA output only: 1.5W (standard) 485 output only: 0.9W (optional) Both 485 and mA: 1.6W (optional) Add two relays: +0.8W (optional)
Power Consumption (220V)	220VAC split instrument: 5W

Dimensions

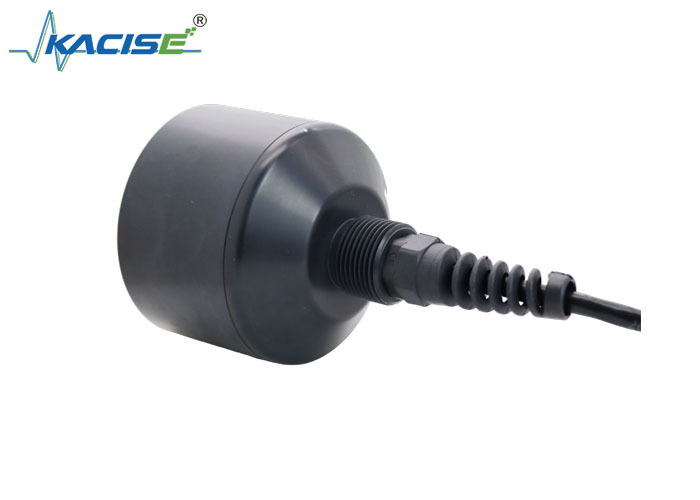

Probe Dimensions

50Khz and 200Khz dual frequency

300Khz

400Khz

500Khz

650Khz
