DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

RS-232C Digital Output Liquid Density Analyzer

High Sensitivity Density Meter

Excellent Stability Vibration Type Density Analyzer

Nombre de la marca:

Yokogawa

Número de modelo:

DM8

Contacta con nosotros

Solicitar una cita

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Detalles del producto

Rango de medición:

Densidad: 0.5 a 2.0 g/cm3

Medición de la temperatura del líquido:

-10 a 100 ℃

Medición de la presión del líquido:

2 MPA G o menos

presión withstandable:

4.9 MPA G

Extención de la señal de salida:

0.05 a 0.5 g/cm3 establecido

Resaltar:

RS-232C Digital Output Liquid Density Analyzer

High Sensitivity Density Meter

Excellent Stability Vibration Type Density Analyzer

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 días de trabajo

Condiciones de pago

Moneygram, Western Union, T/T, D/P, D/A, L/C

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenga el mejor precio

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenga el mejor precio

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenga el mejor precio

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenga el mejor precio

Contacta con nosotros

86--17719566736

Contacta ahora

Descripción del producto

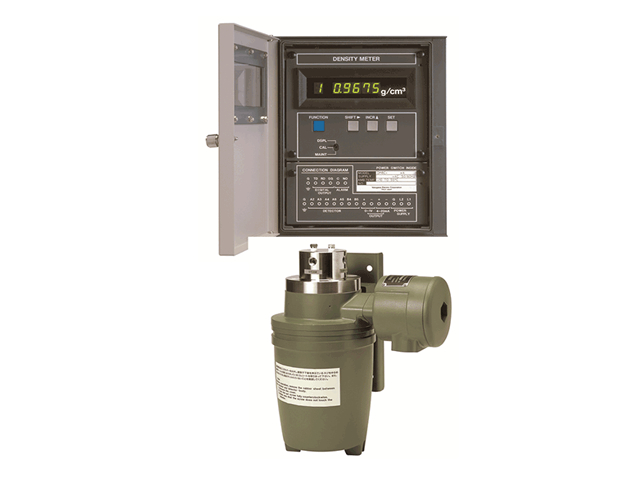

Liquid Density Analyzer DM8C, VD6

Since 1967, Yokogawa's VD6 vibration-type liquid density analyzer has set the standard for online density measurement in process automation. As density is a fundamental physical quantity critical to industrial processes, the VD6 has earned widespread recognition for its exceptional stability and high sensitivity.

The advanced DM8 vibration-type liquid density analyzer builds upon this legacy, incorporating modern computer technology and multiple sensor techniques. Its microprocessor-based converter directly transforms sensor frequency signals into precise density readings, featuring:

Key Features

High sensitivity and stability for reliable measurements
One-touch calibration using standard solution
Field-configurable measuring range
Failure alarm display and output
Outdoor-rated converter installation

The DM8 analyzer measures liquid density from 0 to 2.0 g/cm³ with outstanding precision, unaffected by flow rate or viscosity. Available configurations include general-purpose, sanitary, and explosion-proof sensors.

Technical Specifications

Measurement Object	Liquid density
Measurement Principle	Vibration density measurement
Measurement Range	0.5 to 2.0 g/cm³
Operating Conditions	Liquid temperature: -10 to 100℃ Liquid pressure: ≤2 MPa G Withstandable pressure: 4.9 MPa G
Output Signals	Analog: 4-20 mA DC (≤550Ω) or 0-1V DC (≥250kΩ) Digital: RS-232C
Performance	Linearity: ±0.5% of span (≤0.2 g/cm³) Repeatability: 5*10⁻⁴ g/cm³ (digital), 1% of span (analog)
Physical Specifications	Converter weight: 7.5 kg Detector weight: 12.0 kg Enclosure: Dust and rain proof
Power Requirements	90-132V AC or 180-264V AC, 50/60Hz
