Name: KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSLV654-B
Price: 5,000.00 USD
Availability: InStock

En casa > productos > sensor de la calidad del agua >

KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output

Lugar de origen:

Porcelana

Nombre de la marca:

KACISE

Certificación:

Número de modelo:

KSLV654-B

Contacta con nosotros

Solicitar una cita

KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output

Detalles del producto

Longitud del pedido L:

50 a 2000 mm

Método de montaje:

Roscado M27*2 o M20*1.5

Deriva de temperatura:

≤0,02% FS/℃ (dentro de -40 a 80 ℃)

Nivel de protección:

IP65

Material de la sonda:

PFA

Diámetro de la sonda:

∅10mm

Material del tornillo de fijación:

PTFE

Longitud del pedido:

50 a 2000 mm

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 días laborables

Condiciones de pago

LC, D/A, D/P, T/T, Unión Occidental

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

KSLV651-A Sensor de nivel inteligente compacto con material de prueba FEP de protección IP68 y estabilidad a largo plazo ≤ 0,1% FS/año

Obtenga el mejor precio

Sensor de nivel de agua por radar KWL800 con frecuencia de medición de 80 GHz, rango de medición de 20 m y clasificación de protección IP68

Obtenga el mejor precio

KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output

Obtenga el mejor precio

KSLV654-A Corrosion-Resistant Industrial Level Sensor with IP68 Protection and Multiple Signal Outputs

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

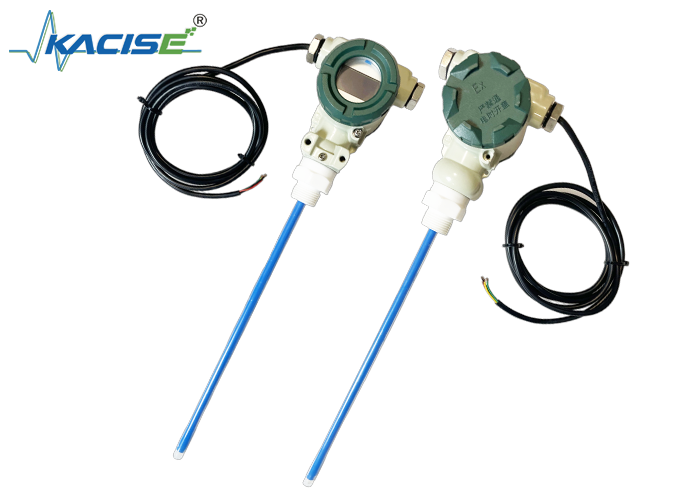

KSLV654-B Industrial Standard Capacitive Level Sensor

The KSLV654-B is a robust industrial capacitive level sensor designed for reliable and continuous liquid level measurement in standard industrial environments. Featuring a high-performance PFA probe and PTFE housing and screws, the sensor provides excellent corrosion resistance and durability, making it suitable for chemical, water treatment, and general industrial applications.

With support for 2-wire or 3-wire 4–20 mA output, the KSLV654-B can be easily integrated into PLC, DCS, or other automation systems, providing precise and stable level monitoring. Its wide operating temperature range, high accuracy, and compact design make it an ideal choice for versatile industrial liquid level measurement.

KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output 0

Product Features

High-Precision Measurement
Advanced capacitive measurement technology delivers accuracy up to Class 0.5, with absolute error as low as ±3 mm, ensuring reliable and precise liquid level readings.

Wide Temperature Adaptability

Measurement temperature: -40 to 120℃
Probe temperature resistance: -60 to 150℃
Suitable for both low- and high-temperature industrial conditions.

Corrosion-Resistant Design

Probe material: PFA
Housing and fixing screws: PTFE
Provides excellent resistance to chemical corrosion and long-term durability.

Multiple Signal Output Options

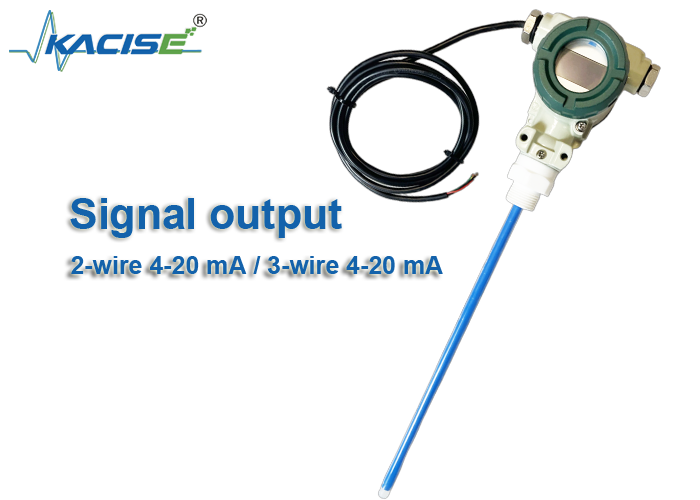

Supports 2-wire or 3-wire 4–20 mA output, allowing flexible integration with industrial control systems.

High Stability and Low Drift

Long-term stability: ≤0.1% FS/year
Temperature drift: ≤0.02% FS/℃
Ensures consistent and reliable performance over time.

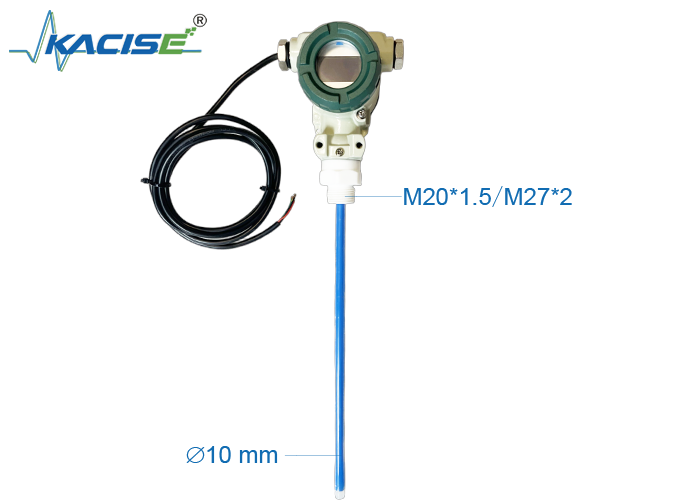

Flexible Installation

Threaded mounting: M27*2 or M20*1.5
Suitable for various tank types and installation environments.

Protection Against Harsh Conditions

Protection level: IP65, suitable for industrial environments with dust and water exposure.

Multiple Measuring Length Options
Measuring length: 50–2000 mm, meeting different container and tank requirements.

Typical Applications

Chemical Processing Industry
Water Treatment Systems
Storage Tank Level Monitoring
Industrial Automation Equipment
Food and Beverage Industry
Pharmaceutical Industry

Technical Parameters

Technical Parameter	Description
Order Length L	50-2000 mm
Accuracy	Absolute error ±3 mm (L ≤ 300 mm), Accuracy class 1.0 (300 < L ≤ 700 mm), Accuracy class 0.5 (700 < L ≤ 2000 mm)
Measurement Temperature	-40 to 120℃
Probe Temperature Resistance	-60 to 150℃
Signal Type	2-wire 4-20 mA / 3-wire 4-20 mA
Supply Voltage	18-36 Vdc, Typical 24 Vdc
Pressure Range	-0.1 to 0.6 MPa
Long-term Stability	≤0.1% FS / year
Temperature Drift	≤0.02% FS/℃ (within -40 to 80℃)
Protection Level	IP65
Probe Material	PFA
Probe Diameter	∅10 mm
Fixing Screw Material	PTFE
Mounting Method	Threaded M272 or M201.5
Dimensional Tolerance	±3 mm
