Name: UC30 Ultrasonic distance sensors
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: UC30
Price: 1,000.10 USD
Availability: InStock

En casa > productos > sensor ultrasónico del transductor >

UC30 Ultrasonic distance sensors

UC30 ultrasonic distance sensor

waterproof ultrasonic sensor

distance sensor with warranty

Nombre de la marca:

SICK

Número de modelo:

UC30

Contacta con nosotros

Solicitar una cita

Detalles del producto

Rango límite::

5.000 mm / 8.000 mm (depende de la variante)

Rango de operación::

350 mm ... 6.000 mm (según variante)

Salida de Digitaces:

Tipo: PNP / NPN / push-pull: PNP/NPN (depende de la variante)

Tiempo de salida:

43 ms ... 60 ms (depende de la variante)

Frecuencia de conmutación:

4 Hz / 3 Hz (depende de la variante)

Salida analógica:

4 mA ... 20 mA, ≤ 500 Ω² / 0 V ... 10 V, ≥ 100.000 Ω

Resaltar:

UC30 ultrasonic distance sensor

waterproof ultrasonic sensor

distance sensor with warranty

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

UC12 Ultrasonic distance sensors

Obtenga el mejor precio

UC30 Ultrasonic distance sensors

Obtenga el mejor precio

UD18 Ultrasonic distance sensors

Obtenga el mejor precio

UM12 Ultrasonic distance sensors

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

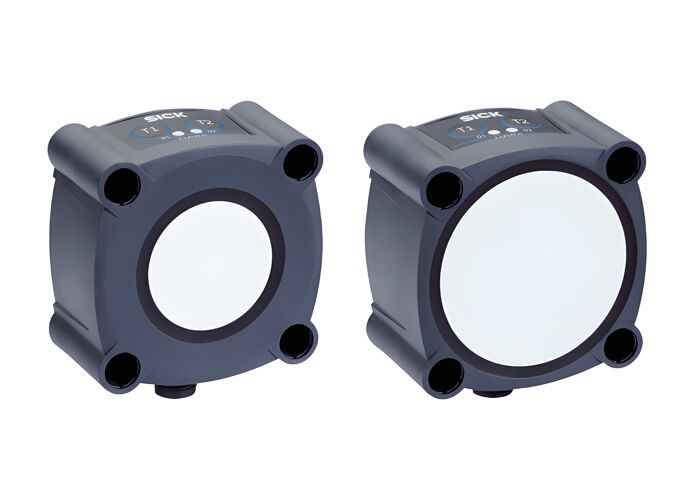

UC30 Ultrasonic Distance Sensors

Ultrasonic distance sensors UC30 deliver exceptional performance in a compact cubic housing. These rugged sensors provide reliable measurement results even in challenging industrial environments.

Rugged. Reliable. Rectangular.

The UC30 product family features excellent performance in a compact cubic design. With color-independent detection, high contamination tolerance, and outstanding background suppression, these sensors deliver stable measurement results under demanding conditions. Various output signals with sensing ranges up to 8,000 mm and integrated temperature compensation ensure high measurement accuracy for diverse applications. Teach-in buttons and IO-Link extend diagnostic and configuration capabilities.

Key Benefits

Compact cubic housing for straightforward machine integration
Rugged plastic housing ensures highest plant availability
Various output signals for solving complex applications
IO-Link with comprehensive diagnostic options for fault-free operation and simple maintenance
Teach-in buttons for fast and easy commissioning
Rugged ultrasonic technology measures reliably in dirty, dusty, humid, and foggy conditions
Integrated temperature compensation ensures high measurement accuracy for optimum process quality

Technical Features

Reliable measurement regardless of material color, transparency, gloss, or ambient light
Rugged housing with teach-in buttons
Sensing ranges up to 8,000 mm
Analog output, push-pull digital output with IO-Link, or two PNP/NPN digital outputs
Immune to dirt, dust, humidity, and fog
Adjustable sensitivity

Technical Parameters

Category	Details
Measuring range	Operating range: 350 mm ... 6,000 mm (depends on variant) Limiting range: 5,000 mm / 8,000 mm (depends on variant)
Resolution	≥ 0.18 mm
Repeatability	± 0.15 %
Response time	180 ms ... 240 ms ¹ 180 ms ... 240 ms
Output time	43 ms ... 60 ms (depends on variant)
Switching frequency	4 Hz / 3 Hz (depends on variant)
Analog output	4 mA ... 20 mA, ≤ 500 Ω ² / 0 V ... 10 V, ≥ 100,000 Ω
Digital output	Type: PNP / NPN / push-pull: PNP/NPN (depends on variant)
IO-Link	✓, IO-Link V1.1
Enclosure rating	IP65 / IP67
Sending axis	Straight
Ambient temperature, operation	-25 °C ... +70 °C

Model Selection Guide

Product variant	Part no.	Min. measuring range	Max. measuring range	Communication interface	Type of digital output	Type of analog output	Measuring frequency	Switching frequency	Response time
UC30-21416B	6068452	350 mm	3400 mm	IO-Link	push-pull: PNP/NPN	-	120 kHz	4 Hz	180 ms
UC30-214164	6054713	350 mm	3400 mm	-	NPN	-	120 kHz	4 Hz	180 ms
UC30-21516B	6068453	600 mm	6000 mm	IO-Link	push-pull: PNP/NPN	-	80 kHz	3 Hz	240 ms
UC30-215163	6054716	600 mm	6000 mm	-	-	Current output, voltage output	80 kHz	-	240 ms
UC30-214163	6054712	350 mm	3400 mm	-	-	Current output, voltage output	120 kHz	-	180 ms
UC30-215162	6054715	600 mm	6000 mm	-	PNP	-	80 kHz	3 Hz	240 ms
UC30-215164	6054717	600 mm	6000 mm	-	NPN	-	80 kHz	3 Hz	240 ms
UC30-214162	6054711	350 mm	3400 mm	-	PNP	-	120 kHz	4 Hz	180 ms
