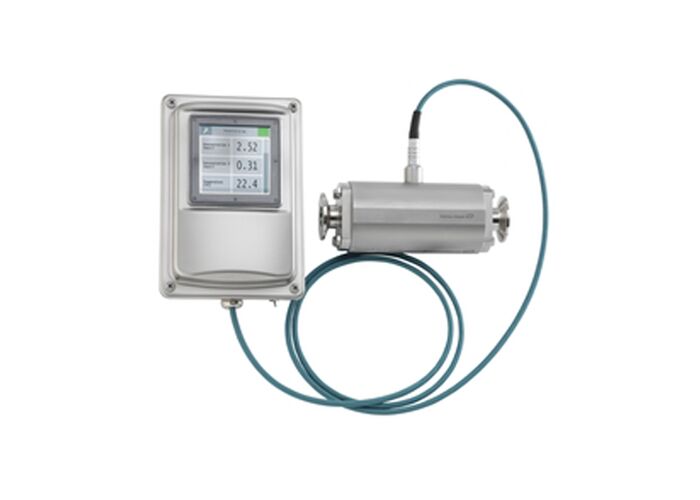

Teqwave H – Ultrasonic concentration meter

Ultrasonic concentration meter Teqwave H

Ultrasonic flow meter with warranty

Teqwave H concentration measurement device

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Contacta con nosotros

Solicitar una cita

Teqwave H – Ultrasonic concentration meter

Detalles del producto

Temperatura del proceso:

0 a 120 °C (32 a 248 °F)

Procesar presión:

máx. 16 bar a 20 °C (232 psi a 68 °F)

Ex certificación:

Área no peligrosa

Protección de ingreso:

Sensor: IP67, IP69 opcional

Resaltar:

Ultrasonic concentration meter Teqwave H

Ultrasonic flow meter with warranty

Teqwave H concentration measurement device

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Prosonic Flow E 100 ultrasonic flowmeter

Obtenga el mejor precio

Proline Prosonic Flow G 300 ultrasonic flowmeter

Obtenga el mejor precio

Proline Prosonic Flow G 500 ultrasonic flowmeter

Obtenga el mejor precio

Proline Prosonic Flow I 400 ultrasonic flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

Teqwave H – Ultrasonic Concentration Meter

Inline device with best-in-class hygienic design - plug and play for food and beverage processes. High accuracy and repeatability with continuous quality monitoring of beverages and in cleaning processes.

Field of Application

Teqwave H is ideal for real-time liquid analysis in hygienic applications like spirits and soft drink production. The device provides highly accurate in situ concentration measurement with a hygienic design, reducing operational expenditure by monitoring multiple parameters simultaneously.

Key Benefits

High accuracy and repeatability - concentration calculation with latest algorithms
Fulfillment of hygienic requirements - easily cleanable full-bore sensor
Full transparency - constant monitoring of product quality without sampling
Highest process safety - reliable metering due to robust, maintenance-free sensor
Customized usage - innovative application concept, expandable for changing measuring tasks
Simplified process control - user-friendly operation and clear status visualization
Local data backup - integrated data storage for measured values up to 7.5 years

Technical Specifications

Measuring Principle	Ultrasonic concentration
Measured Variables	Concentration, sound velocity, temperature, acoustic density, dispersion
Nominal Diameter	DN 25 (1" DIN and ANSI)
Design	Inline, hygienic
Process Temperature	0 to 120°C (32 to 248°F)
Process Pressure	max. 16 bar at 20°C (232 psi at 68°F)
Power Supply	DC 24V ±20%

Measurement Accuracy

Acoustic Density	±0.01 g/cm³
Temperature	±0.5 K
Sound Velocity	±2 m/s

Measuring Ranges

Concentration	According to concentration app data sheet, maximum 0 to 100%
Sound Velocity	600 to 2000 m/s
Temperature	0 to +100°C (32 to +212°F)
Acoustic Density	0.7 to 1.5 g/cm³

Device Features

Sensor Features

Nominal diameter: DN 25 (1")
Sensor housing made of stainless steel (3-A, EHEDG)
Accurate and independent of flow profile
Fulfillment of hygienic requirements - easily cleanable full-bore sensor
Highest process safety - reliable metering due to robust, maintenance-free sensor

Transmitter Features

Industry-compliant, easy installation via DIN rail and pipe mounting set
3.5" TFT color touch screen or LED indication
4-20 mA, Modbus TCP outputs
Customized usage - innovative application concept
Local data storage for measured values up to 7.5 years

Materials & Certifications

Wetted Materials	Stainless steel 1.4404 (316L)
Transmitter Housing	Anodized aluminium and glass, optional 1.4301 and plastic
Ingress Protection	Sensor: IP67, IP69 optional Transmitter: IP40, optional IP67
Product Safety	CE, UKCA, RCM
Ex Certification	Non-hazardous area
