Name: Proline Promass X 300 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolina Promass X 300
Price: 2,540.00 USD
Availability: InStock

En casa > productos > Metro de flujo electromágnetico >

Proline Promass X 300 Coriolis flowmeter

Proline Promass X 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Número de modelo:

Prolina Promass X 300

Contacta con nosotros

Solicitar una cita

Proline Promass X 300 Coriolis flowmeter

Detalles del producto

Rango de medición:

Rango de medición0 a 4100 t/h (0 a 4520 tn.sh./h)

Max. procesar presión:

PN 100, Clase 600

Rango de temperatura media:

–50 a +180 °C (–58 a +356 °F)

Rango de temperatura ambiente:

Estándar: –40 a +60 °C (–40 a +140 °F)

Resaltar:

Proline Promass X 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Condiciones de pago y envío

Productos relacionados

Proline Promass S 300 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass P 500 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass Q 300 Coriolis flowmeter

Obtenga el mejor precio

Proline t-mass F 500 thermal mass flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

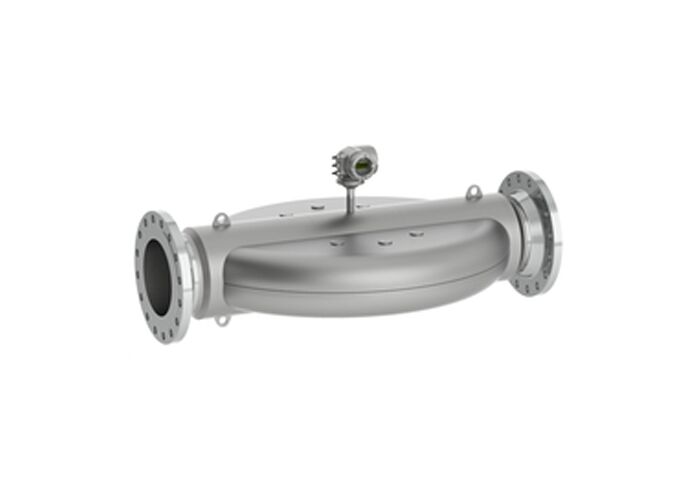

Proline Promass X 300 Coriolis Flowmeter

Highest capacity four-tube flowmeter with a compact, easily accessible transmitter for highest flow rates and outstanding performance in on/offshore oil and gas applications.

Key Specifications

Max. Measurement Error:

Mass flow (liquid): ±0.10% (standard), 0.05% (option)

Volume flow (liquid): ±0.10%

Mass flow (gas): ±0.25%

Density (liquid): ±0.0005 g/cm³

Measuring Range: 0 to 4100 t/h (0 to 4520 tn. sh./h)

Medium Temperature: -50 to +180 °C (-58 to +356 °F)

Max. Process Pressure: PN 100, Class 600

Nominal Diameter: DN 300 to 400 (12 to 16")

Wetted Materials:

Measuring tube: 1.4404 (316/316L)

Connection: 1.4404 (316/316L)

Field of Application

The patented four-tube Promass X provides premium accuracy (0.05%) for highest capacity and offers outstanding performance in on- and offshore applications in the oil and gas industry. The measuring principle operates independently of physical fluid properties such as viscosity or density.

Key Benefits

Increased profit - single installation point providing premium accuracy for large quantities
Fewer process measuring points - multivariable measurement (flow, density, temperature)
Space-saving installation - no in-/outlet run needs
Full access to process and diagnostic information - numerous, freely combinable I/Os and Ethernet
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology

Device Features

Sensor Features

Four-tube system with low pressure drop
Complete exterior design made of 1.4435 (316L)
Nominal diameter: DN 300 to 400 (12 to 16")

Transmitter Features

Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available

Technical Specifications

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow (API tables), reference density, concentration

Environmental Conditions

Ambient Temperature:

Standard: -40 to +60 °C (-40 to +140 °F)

Option: -50 to +60 °C (-58 to +140 °F)

Degree of Protection: IP66/67, type 4X enclosure

Inputs & Outputs

Type	Details
Outputs	3 outputs including 4-20 mA HART, WirelessHART, pulse/frequency/switch output, relay output
Inputs	Status input, 4-20 mA input
Digital Communication	HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Power Supply

DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC

Product Safety: CE, C-tick, EAC marking

Functional Safety: IEC 61508, applicable in safety-relevant applications per IEC 61511

Metrological: ISO/IEC 17025, ISO 9001:2015, MI-005, MI-002, PTB

Marine: LR, DNV, ABS, BV, CCS approvals

Pressure: PED, CRN

Material: 3.1 material, NACE MR0175/MR0103, PMI, welding tests per EN ISO, ASME, NORSOK
