Name: Proline Promass Q 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolina Promass Q 500
Price: 2,540.00 USD
Availability: InStock

En casa > productos > Metro de flujo electromágnetico >

Proline Promass Q 500 Coriolis flowmeter

Proline Promass Q 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for liquids

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Número de modelo:

Prolina Promass Q 500

Contacta con nosotros

Solicitar una cita

Proline Promass Q 500 Coriolis flowmeter

Detalles del producto

Rango de medición:

0 a 2 400 000 kg/h (0 a 88183 lb/min)

Aprobación de zonas peligrosas:

El número de unidades de producción de las empresas de la Unión incluidas en el anexo I del Reglamen

Seguridad de productos:

Marcado CE, marcado C, marcado EAC

Aprobaciones y certificados marítimos:

Homologación LR, homologación DNV, homologación ABS, homologación BV, homologación CCS

Homologaciones y certificados de presión.:

PED, CRN, 2000 d.C.

Resaltar:

Proline Promass Q 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for liquids

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Promass S 300 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass P 500 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass Q 300 Coriolis flowmeter

Obtenga el mejor precio

Proline t-mass F 500 thermal mass flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

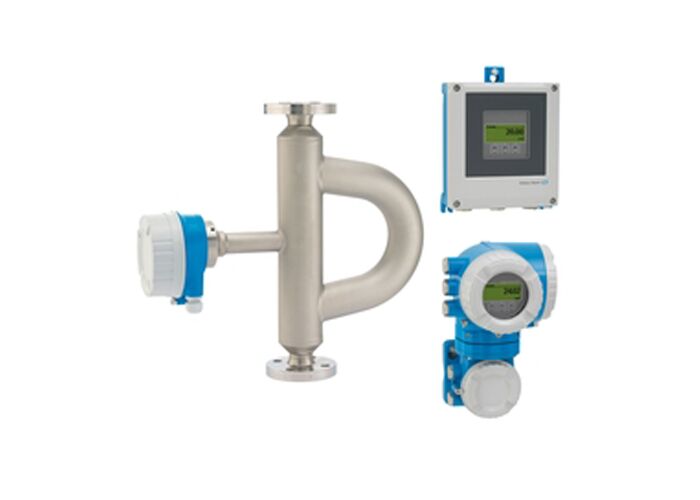

Proline Promass Q 500 Coriolis Flowmeter

The Proline Promass Q 500 provides the highest measurement accuracy for mass flow, volume flow, and density. As the preferred choice for custody transfer applications, it has been optimized for liquid applications where entrained gas may be present. With its innovative remote transmitter, the Promass Q 500 maximizes installation flexibility and operational safety in demanding environments.

Key Specifications

Maximum Measurement Error	Mass flow (liquid): ±0.10% (standard), 0.05% (option) Volume flow (liquid): ±0.10% Mass flow (gas): ±0.25% Density (liquid): ±0.2 kg/m³ (standard), ±0.1 kg/m³ (option)
Measuring Range	0 to 2,400,000 kg/h (0 to 88,183 lb/min)
Medium Temperature Range	Standard: -50 to +205°C (-58 to +401°F) Option: -196 to +150°C (-321 to +302°F)
Maximum Process Pressure	PN 100, Class 600, 63K
Nominal Diameter Range	DN 25 to 250 (1" to 10")

Field of Application

Promass Q 500 delivers highest measurement performance for custody transfer, density measurement, and operation under tough process conditions. Heartbeat Technology enables safe processes while operating independently of physical fluid properties such as viscosity or density.

Key Benefits

Unmatched accuracy of mass flow, volume flow, and density measurement
Optimized performance for liquids with entrained gas using Multi-Frequency Technology
Multivariable measurement (flow, density, temperature) reduces process measuring points
Space-saving installation with no inlet/outlet run requirements
Full access to process and diagnostic information through numerous I/Os and Ethernet
Freely configurable I/O functionality reduces complexity
Integrated verification via Heartbeat Technology

Technical Features

Sensor Features: Mass flow measurement error ±0.05% (PremiumCal), density measurement error ±0.2 kg/m³, high turndown due to low pressure loss/zero point

Transmitter Features: Remote version with up to 4 I/Os, backlit display with touch control and WLAN access, standard cable between sensor and transmitter

Construction Materials

Wetted Materials	Measuring tube: 1.4404 (316/316L); stainless steel for cryogenic applications Connection: 1.4404 (316/316L)
Sensor Housing Material	1.4404 (316L), highest corrosion resistance
Transmitter Housing Material	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonate

Certifications & Approvals

ATEX IECEx cCSAus NEPSI INMETRO EAC KC CE C-tick 3-A EHEDG cGMP PED CRN AD 2000 NACE
