Name: Proline Promass I 100 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolina Promass I 100
Price: 2,540.00 USD
Availability: InStock

En casa > productos > Metro de flujo electromágnetico >

Proline Promass I 100 Coriolis flowmeter

Proline Promass I 100 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for industrial use

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Número de modelo:

Prolina Promass I 100

Contacta con nosotros

Solicitar una cita

Proline Promass I 100 Coriolis flowmeter

Detalles del producto

Comunicación de Digitaces:

HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET

Fuente de alimentación:

CC de 20 a 30 V

Aprobación de zonas peligrosas:

ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC

Seguridad de productos:

Marcado CE, marcado C, marcado EAC

Sensor que contiene el material:

1.4301/1.4307 (304L), resistente a la corrosión

Resaltar:

Proline Promass I 100 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for industrial use

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Promass S 300 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass P 500 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass Q 300 Coriolis flowmeter

Obtenga el mejor precio

Proline t-mass F 500 thermal mass flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

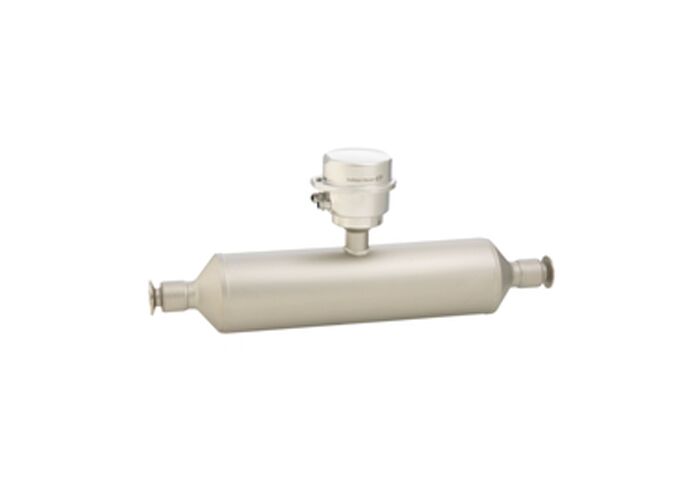

Proline Promass I 100 Coriolis Flowmeter

Combines in-line viscosity and flow measurement with an ultra-compact transmitter for applications requiring low pressure loss and gentle fluid treatment.

Field of Application

The straight single-tube design of the Promass I 100 provides standard Coriolis flowmeter outputs of mass flow, density and temperature, with optional in-line viscosity measurement. Combined with the smallest transmitter housing available, it delivers full performance on the smallest footprint. Ideal for system integrators, skid builders and equipment manufacturers.

Key Benefits

Energy-saving - full bore design enables minimal pressure loss
Fewer process measuring points - multivariable measurement (flow, density, temperature)
Space-saving installation - no in/outlet run needs
Space-saving transmitter - full functionality on smallest footprint
Time-saving local operation without additional software and hardware - integrated web server
Integrated verification - Heartbeat Technology

Technical Specifications

Measurement Performance

Mass flow (liquid)	±0.1 %
Volume flow (liquid)	±0.1 %
Mass flow (gas)	±0.5 %
Density (liquid)	±0.0005 g/cm³

Operating Ranges

Measuring range	0 to 180,000 kg/h (0 to 6,600 lb/min)
Medium temperature	-50 to +150 °C (-58 to +302 °F)
Ambient temperature	Standard: -40 to +60 °C (-40 to +140 °F) Option: -50 to +60 °C (-58 to +140 °F)
Nominal diameter	DN 8 to 80 (⅜ to 3")

Materials & Construction

Wetted materials	Measuring tube: Titanium grade 9 Connection: Titanium grade 2
Sensor housing	1.4301/1.4307 (304L), corrosion resistant
Transmitter housing	Compact: AlSi10Mg, coated Compact/ultra-compact: 1.4301 (304)

Pressure & Protection

Max. process pressure	PN 100, Class 600, 63K
Degree of protection	Standard: IP66/67, type 4X enclosure Option: IP69

Device Features

Sensor Features

Straight, easy-to-clean single-tube system
TMB® technology
Measuring tube made of Titanium
Robust, ultra-compact transmitter housing
High ingress protection: IP69K
Local display available

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity

Communication & I/O

Outputs	4-20 mA HART (active) Pulse/frequency/switch output (passive)
Inputs	None
Digital communication	HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
Power supply	DC 20 to 30 V

Certifications & Approvals

Hazardous area	ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC
Product safety	CE, C-Tick, EAC marking
Metrological	Calibration performed on accredited facilities (ISO/IEC 17025) Heartbeat Technology complies with ISO 9001:2015 requirements
Pressure	PED, CRN
Material	3.1 material certificate
Hygienic	3-A, EHEDG, cGMP
