Name: Proline Promag H 500 electromagnetic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promag H 500
Price: 2,540.00 USD
Availability: InStock

En casa > productos > Metro de flujo electromágnetico >

Proline Promag H 500 electromagnetic flowmeter

Proline Promag H 500 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter Proline Promag

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Número de modelo:

Proline Promag H 500

Contacta con nosotros

Solicitar una cita

Proline Promag H 500 electromagnetic flowmeter

Detalles del producto

Rango de medición:

0.06 dm3/min a 600 m3/h (0,015 gal/min a 2 650 gal/min)

Max. procesar presión:

PN 40, clase 150, 20K

Rango de temperatura media:

¥20 a +150 °C (¥4 a +302 °F)

Rango de temperatura ambiente:

–40 a +60 °C (–40 a +140 °F)

Homologaciones y certificados de presión.:

PED, CRN

Certificados de materiales:

3.1 material

Resaltar:

Proline Promag H 500 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter Proline Promag

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Promass S 300 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass P 500 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass Q 300 Coriolis flowmeter

Obtenga el mejor precio

Proline t-mass F 500 thermal mass flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

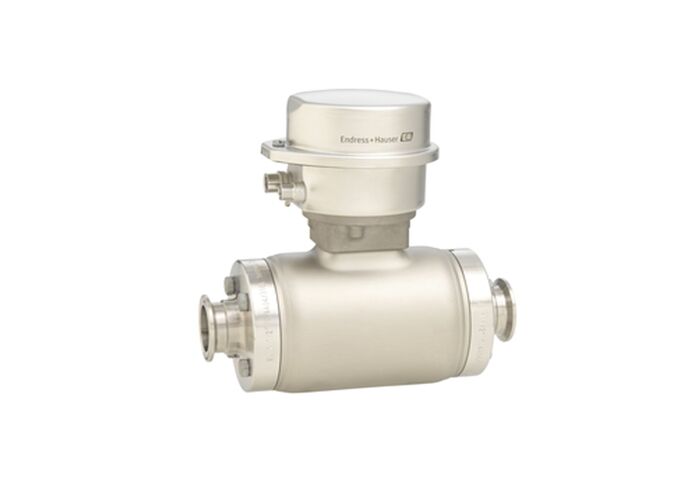

Proline Promag H 500 Electromagnetic Flowmeter

Specialist for hygienic applications, as remote version with up to 4 I/Os. Dedicated to demanding applications in the food and beverage as well as in life sciences industries.

Field of Application

Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. With its innovative remote transmitter, Promag H 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables compliance and process safety at all times.

Key Specifications

Maximum Measurement Error

Volume flow (standard): ±0.5% o.r. ±1 mm/s (0.04 in/s)

Volume flow (option): ±0.2% o.r. ±2 mm/s (0.08 in/s)

Measuring Range

0.06 dm³/min to 600 m³/h (0.015 gal/min to 2,650 gal/min)

Medium Temperature Range

-20 to 150 °C (-4 to 302 °F)

Maximum Process Pressure

PN 40, Class 150, 20K

Nominal Diameter Range

DN 2 to 150 (¹⁄₁₂ to 6")

Wetted Materials

Component	Materials
Liner	PFA
Electrodes	1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections	Stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals	O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings	Stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum

Device Properties

Liner made of PFA
Sensor housing made of stainless steel (3-A, EHEDG)
Wetted materials CIP, SIP cleanable
Remote version with up to 4 I/Os; hygienic sensor connection housing with IP69
Backlit display with touch control & WLAN access
Standard cable between sensor & transmitter

Key Benefits

Multivariable measurement for flow, temperature and conductivity
Flexible installation concept - numerous hygienic process connections
Energy-saving flow measurement - no pressure loss due to cross-section constriction
Maintenance-free - no moving parts
Full access to process and diagnostic information - numerous, freely combinable I/Os and Ethernet
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology

Technical Details

Measured Variables

Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected conductivity

Ambient Temperature Range

-40 to 60 °C (-40 to 140 °F)

Degree of Protection

Sensor remote version (standard): IP66/67, type 4X enclosure

Sensor remote version (option): IP69

Transmitter remote version: IP66/67, Type 4X enclosure

Power Supply

DC 24 V

AC 100 to 230 V

AC 100 to 230 V / DC 24 V (non-hazardous area)

Approvals and Certifications

ATEX IECEx cCSAus CE 3-A EHEDG PED CRN IEC 61508 ISO/IEC 17025
