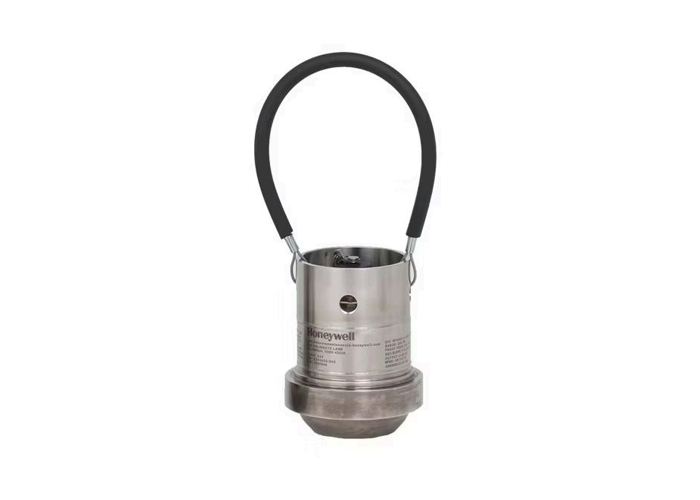

Name: Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Modelo 434
Price: 152.00 USD
Availability: InStock

En casa > productos > Sensor de presión de precisión >

Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy

0 psi to 20

000 psi Pressure Transducer

±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

Nombre de la marca:

Honeywell

Número de modelo:

Modelo 434

Contacta con nosotros

Solicitar una cita

Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy

Detalles del producto

Apertura estándar.:

0 psi a 20.000 psi

Exactitud:

±0,2 % FSS BFSL

Producción:

4 mA a 20 mA, 2 hilos

Temperatura, funcionamiento:

-40 °C a 125 °C [-40 °F a 257 °F]

Temperatura, compensada:

-40 °C a 85 °C [-40 °F a 185 °F]

Piezas mojadas:

Inconel® 718 (cumple con NACE)

Resaltar:

0 psi to 20

000 psi Pressure Transducer

±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 días de trabajo

Condiciones de pago

L/C, D/A, D/P, T/T, Western Union, Moneygram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Obtenga el mejor precio

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Obtenga el mejor precio

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Obtenga el mejor precio

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Obtenga el mejor precio

Contacta con nosotros

86--17719566736

Contacta ahora

Descripción del producto

Honeywell Model 434 Wing Union Pressure Transducers

Standard aperture. 0 psi to 20,000 psi. ±0.2% full-scale accuracy.

Overview

Models 434/435/437 Wing Union/Hammer Union Pressure Sensors are designed for demanding oil and gas applications as well as stimulation and circulation systems. They feature an all-welded, stainless steel assembly with the sensor diaphragm and wing union fitting machined as one part, providing hermetic integrity and minimizing media leakage.

Value to Customers

Durable: Weco® Wing Union-compatible fittings are machined of Inconel® X-750, or optional NACE-compliant Inconel® 718, allowing for use with abrasive and corrosive media. Protective cage option provides electrical connection protection.
Reliable: All-welded, stainless steel assembly, shock/vibration ratings, and isolated pressure sensing diaphragm increase reliability.
Accurate: High accuracy option provides confidence in measured pressure values, particularly for smaller pressure changes, allowing precise drilling operation adjustments.
Availability and service: Global manufacturing and support enable quick delivery of customized products to meet project timelines.

Differentiators

High or standard accuracy capability meets tighter system requirements with lower error bands than comparable competitive models.
Shunt calibration option enhances configurability and flexibility - 1-wire shunt calibration is achievable with a single barrier application, helping minimize installation costs.
IEC Ex approval allows for use in hazardous areas in Asia-Pacific, EMEA, and by the U.S. Coast Guard.
Protective cage option available.
Welded construction for enhanced durability.

Part Numbers

Part Number	Description
060-P774-01	BP434EJ, 6, 1AC, 2AK, 6BF, 7AE, 10J:MODEL 434
060-P909-01-01	BP434EJ, 6, 1AC, 2AK, 6Z, 7AD, 9A, 10J:Model
060-R267-01	BP434DR, 6, 1AC, 2AK, 6BF, 7AE, 10J, 45E:Model
060-R310-01	BP434EL, 6, 1AC, 2AK, 6Z, 7AD, 10J:MODEL 434
060-R392-01	BP434EL, 6, 1AC, 2AK, 6A, 7AF, 10J:MODEL 434
