Name: WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: WE420
Price: 5,000.00 USD
Availability: InStock

En casa > productos > sensor de la calidad del agua >

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Ion Selective Electrode Sodium Analyzer

Reference Electrode Water Quality Sensor

Online Continuous Measurement Sodium Analyzer

Nombre de la marca:

Yokogawa

Número de modelo:

WE420

Contacta con nosotros

Solicitar una cita

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Detalles del producto

Resaltar:

Ion Selective Electrode Sodium Analyzer

Reference Electrode Water Quality Sensor

Online Continuous Measurement Sodium Analyzer

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 días de trabajo

Condiciones de pago

Moneygram, Western Union, T/T, D/P, D/A, L/C

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenga el mejor precio

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenga el mejor precio

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenga el mejor precio

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenga el mejor precio

Contacta con nosotros

86--17719566736

Contacta ahora

Descripción del producto

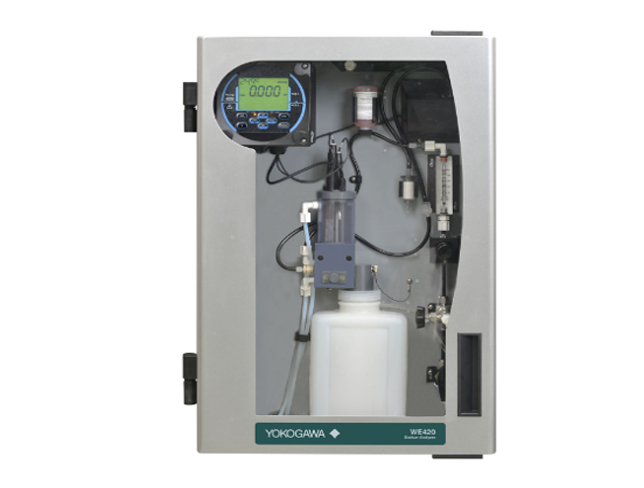

WE420 Sodium Analyzer

The WE420 Sodium Analyzer is an online continuous analyzer that uses an ion selective electrode and reference electrode to measure sodium concentration. This instrument provides critical monitoring for water and steam quality, serving as an early indicator of condensate leakage and potential turbine corrosion. With turbine corrosion repairs costing up to $30 billion annually, sodium monitoring helps reduce power generation, transmission, and distribution costs.

Ideal for power generation water applications including:

Feedwater systems
Boiler water
Deaerator inlet/outlet
Condensate discharge
Economizer inlet

Key Features

Process Guard

Calibration utilizes the online process sample with Double Known Addition for low range standards, ensuring the most accurate calibration and online measurement readings.

Expert Guide

The WE420 maximizes uptime with simple step-by-step scrolling instructions for setup, including calibration, operation, and diagnostics menus. The large backlit display provides clear visibility of measurements from any distance, even in low-light conditions.

Reduced Maintenance

The WE420 minimizes operator time and maintenance requirements by eliminating complicated moving parts or pumps that typically need frequent attention. Its efficient reagent consumption extends usage up to three months.

The ion selective sensor requires only quick etching in a low-dilution hydrofluoric acid (HF) sample - less concentrated than prescription toothpaste - unlike other units that need thorough soaking in high sodium concentrations followed by pure water rinsing.

Advanced Flexibility

Users can select from three different reagents to meet specific application requirements and environmental compliance standards.

The Importance of Sodium Measurement

Sodium is always present with highly corrosive elements like chlorides, sulfates, and hydroxide. At high pressures and temperatures, sodium becomes readily soluble in steam, potentially causing:

Stress corrosion cracking of superheater tubes
Turbine deposits

Sodium ions are the first to indicate exhaustion and leakages in reactions, making them particularly valuable for detecting contamination in condenser cooling water and preventing boiler water contamination.
