Name: Sensor Holder for pH/ORP and DO Analyzers with 2-inch Pipe Mounting and 0 to 80℃ Temperature Range for Max 3m Submersion Depth
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FH350G
Price: 5,000.00 USD
Availability: InStock

En casa > productos > sensor de la calidad del agua >

Sensor Holder for pH/ORP and DO Analyzers with 2-inch Pipe Mounting and 0 to 80℃ Temperature Range for Max 3m Submersion Depth

2-inch pipe mounting Sensor Holder

0 to 80℃ temperature range pH/ORP Holder

Max 3m submersion depth DO Holder

Nombre de la marca:

Yokogawa

Número de modelo:

FH350G

Contacta con nosotros

Solicitar una cita

Sensor Holder for pH/ORP and DO Analyzers with 2-inch Pipe Mounting and 0 to 80℃ Temperature Range for Max 3m Submersion Depth

Detalles del producto

Montaje:

Montaje de tubería de 2 pulgadas vertical u horizontal

Temperatura de medición:

0 a 50 ℃ (PVC), 0 a 80 ℃ (polipropileno)

Resaltar:

2-inch pipe mounting Sensor Holder

0 to 80℃ temperature range pH/ORP Holder

Max 3m submersion depth DO Holder

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 días de trabajo

Condiciones de pago

Moneygram, Western Union, T/T, D/P, D/A, L/C

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenga el mejor precio

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenga el mejor precio

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenga el mejor precio

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenga el mejor precio

Contacta con nosotros

86--17719566736

Contacta ahora

Descripción del producto

Sensor Holders for pH/ORP, DO and MLSS Analyzers

Yokogawa provides several types of holders with optional cleaning attachments, enabling customers to build reliable and easy-to-maintain measuring systems by selecting the appropriate holders and cleaners for specific application conditions.

Holder Types Overview

Submersion Type Holders (PH8HS, PH8HSF, DOX8HS): Directly immersed in reaction tanks or measuring baths
Flow-Through Type Holders (PH8HF, PH8HFF, FH350G): Installed along pipelines for production line or wastewater measurement
Suspension Holder (HH350G): Features guide pipe for easy electrode maintenance
Float Ball Holders (PB350G, PB360G): Designed for fluctuating liquid levels with reduced maintenance requirements

Detailed Specifications

1. Guide-Pipe PH8HG

Applicable sensors	General pH Sensor PH8ERP, PH8EFP General ORP Sensor OR8ERG, OR8EFG Dissolved Oxygen Sensor DO30G MLSS Sensor SS300G
Mounting	2-inch pipe mounting vertical or horizontal
Material	Holder: Polypropylene or PVC Mounting bracket: Galvanized iron or stainless steel (equivalent to 304SS)
Measuring temperature	0 to 50℃ (PVC), 0 to 80℃ (Polypropylene)
Weight	Holder: Approx. 2 kg Mounting bracket: Approx. 1 kg/set

2-A. Submersion Type Holder PH8HS

Applicable sensors	General pH Sensor PH8ERP, PH8EFP, PH8ERG, PH8EFG Special pH Sensor HA405, DPA405, HF405 General ORP Sensor OR8ERG, OR8EFG Special ORP Sensor HA485, DPA485
Mounting	2-inch pipe mounting vertical or horizontal with 1 or 2 sets of mounting hardware
Cleaning method	Jet cleaning, brush cleaning or ultrasonic cleaning
Material	Holder: Polypropylene or stainless steel (equivalent to 316SS) Mounting bracket: Galvanized iron or stainless steel (equivalent to 304SS)
Weight	Holder: Approx. 0.5 to 2.2 kg (polypropylene), Approx. 1.5 to 11.5 kg (stainless steel) Mounting bracket: Approx. 1 kg/set
Measuring temperature	No Cleaning: -5 to 100℃ With Cleaning: -5 to 80℃
Measuring flow speed	2m/s or less
Measuring pressure	Submersion depth Max. 3m

2-B. Submersion Type Holder (Explosionproof Type) PH8HSF

Applicable sensors	General pH Sensor PH8ERP, PH8EFP, PH8ERG, PH8EFG General ORP Sensor OR8ERG, OR8EFG
Mounting	2-inch pipe mounting vertical or horizontal with 1 or 2 sets of mounting hardware
Cleaning method	Ultrasonic cleaning
Material	Holder: Polypropylene or stainless steel (equivalent to 316SS) Mounting bracket: Galvanized iron or stainless steel (equivalent to 304SS)
Construction	JIS flameproof type (for d2G4 gas)
Weight	Holder: Approx. 0.5 to 2.2 kg (polypropylene), Approx. 1.5 to 11.5 kg (stainless steel) Mounting bracket: Approx. 1 kg/set
Measuring temperature	-5 to 80℃
Measuring flow speed	2m/s or less
Measuring pressure	Submersion depth Max. 3m

Key Features by Holder Type

Submersion Type Holders: PH8HS, PH8HSF and DOX8HS

Available in stainless steel or polypropylene
Optional jet- or ultrasonic-cleaning device (unavailable for DOX8HS)
Optional flange fitting for PH8HS
Skewed mounting for DOX8HS to prevent influence from bubbles

Flow-Through Type Holders: PH8HF, PH8HFF and FH350G

Available in stainless steel or polypropylene
Optional jet- or ultrasonic-cleaning device (unavailable for FH350G)
Allows direct mounting to the pipeline

Suspension Holder: HH350G

Allows the electrode to be pulled up separately
Easy maintenance
Optional jet-cleaning device

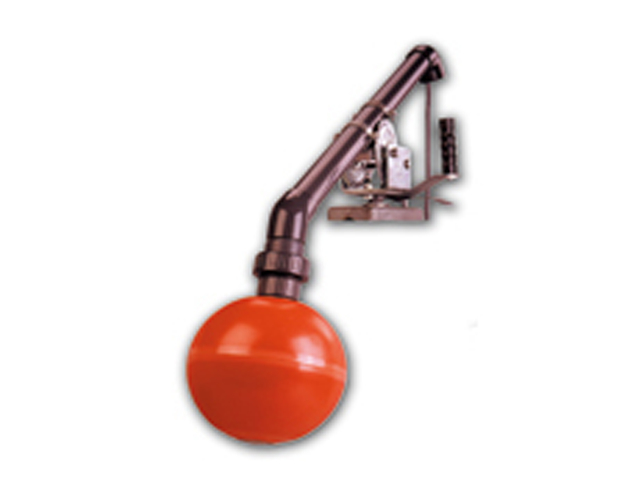

Float Ball Holders: PB350G and PB360G

Continuous stable measurement without effect from fluid level fluctuations
Reduces maintenance frequency
Easy-to-maintain design
Vertical type available for limited installation space
