Name: SC8SG Conductivity Sensor with 2-electrode and 4-electrode systems featuring 0.01 cm-1 cell constant for precise liquid conductivity measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SC8SG
Price: 5,000.00 USD
Availability: InStock

En casa > productos > sensor de la calidad del agua >

SC8SG Conductivity Sensor with 2-electrode and 4-electrode systems featuring 0.01 cm-1 cell constant for precise liquid conductivity measurement

2-electrode system Conductivity Sensor

4-electrode system Conductivity Sensor

0.01 cm-1 cell constant Conductivity Sensor

Nombre de la marca:

Yokogawa

Número de modelo:

SC8SG

Contacta con nosotros

Solicitar una cita

SC8SG Conductivity Sensor with 2-electrode and 4-electrode systems featuring 0.01 cm-1 cell constant for precise liquid conductivity measurement

Detalles del producto

Principio de medición:

Sistema de 2 electrodos o 4 electrodos

las constantes de las células:

0.01 cm-1 o 10 cm-1 (para el sistema de 2 electrodos) 10 cm-1 (para el sistema de 4 electrodos)

Presión:

1000 kPa máx. (500 kPa máximo para detectores con cámaras de polipropileno)

RTD para la compensación de temperatura:

PT1000 (integrado en el sensor)

Construcción:

Encapsulación impermeable (compatible con JIS C0920)

Conexión de proceso:

Atornillado o flujo

Resaltar:

2-electrode system Conductivity Sensor

4-electrode system Conductivity Sensor

0.01 cm-1 cell constant Conductivity Sensor

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 días de trabajo

Condiciones de pago

Moneygram, Western Union, T/T, D/P, L/C, D/A

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenga el mejor precio

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenga el mejor precio

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenga el mejor precio

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenga el mejor precio

Contacta con nosotros

86--17719566736

Contacta ahora

Descripción del producto

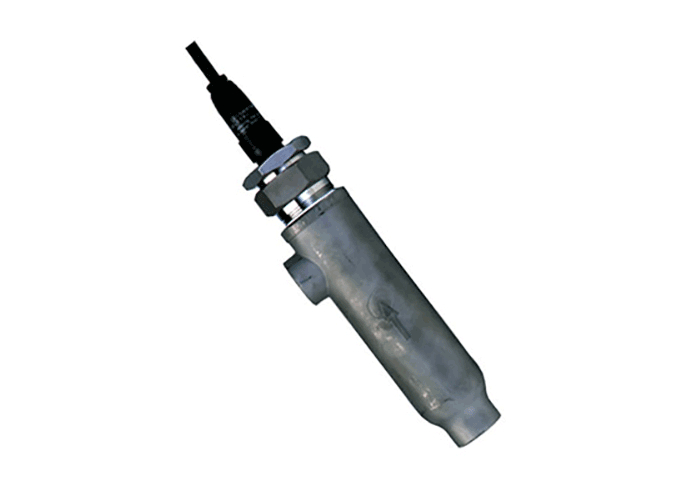

Conductivity Sensor SC8SG

Yokogawa supplies superior on-line analyzers for monitoring and controlling the conductivity of liquids and solutions. Our product line includes the SC450G four-wire conductivity/resistivity converter, SC202G and SC202S two-wire conductivity/resistivity transmitters, and SC100 panel mount conductivity converter, complemented by a range of precision sensors for accurate liquid conductivity measurement.

The SC8SG conductivity sensor is engineered to meet demanding ultrapure water requirements in semiconductor and pharmaceutical industries, while also serving traditional water quality measurement needs in power plants and chemical applications. Available in multiple mounting configurations including screw-in, flow-through with screw joint, and flow-through with flange.

Specifications

Measurement Object	Conductivity of liquids or solutions
Measuring Principle	2-electrode or 4-electrode system
Cell Constants	0.01 cm⁻¹ or 10 cm⁻¹ (2-electrode system) 10 cm⁻¹ (4-electrode system)
Measuring Ranges	0 - 0.5 μS/cm to 0 - 100 μS/cm (0.01 cm⁻¹ cell constant) 0 - 1 mS/cm to 0 - 1000 mS/cm (10 cm⁻¹ cell constant)
Temperature Range	0 to 100°C (130°C max for 0.01 cm⁻¹ detectors, excluding polypropylene chambers)
Pressure	1000 kPa max (500 kPa max for polypropylene chamber detectors)
Flow Rate	No specific limits, though <20 l/min recommended for flow-through detectors
Temperature Compensation	Pt1000 RTD (built into sensor)
Construction	Rainproof encapsulation (JIS C0920 compliant)
Weight	Screw-in: ~1.3 kg (without cable) Flow-through (SCS14 chamber): ~3.1 kg Flow-through (SCS14 flanged): ~4.5 kg Flow-through (polypropylene chamber): ~2.7 kg Flow-through (polypropylene flanged): ~3.2 kg Cable: 0.3 kg (5.5 m), 0.5 kg (10 m)
Process Connection	Screw-in or flow-through
