Name: Low Conductivity Sensor with Pt1000 Temperature Element and 316 Stainless Steel or Titanium Construction for 2-Electrode Design
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SC4A (J)/SC42
Price: 5,000.00 USD
Availability: InStock

En casa > productos > sensor de la calidad del agua >

Low Conductivity Sensor with Pt1000 Temperature Element and 316 Stainless Steel or Titanium Construction for 2-Electrode Design

Pt1000 Temperature Element Low Conductivity Sensor

316 Stainless Steel or Titanium Low Conductivity Sensor

2-Electrode Design Low Conductivity Sensor

Nombre de la marca:

Yokogawa

Número de modelo:

SC4A (J)/SC42

Contacta con nosotros

Solicitar una cita

Low Conductivity Sensor with Pt1000 Temperature Element and 316 Stainless Steel or Titanium Construction for 2-Electrode Design

Detalles del producto

Elementos de temperatura:

PT1000

Materiales de la construcción:

316 acero inoxidable o titanio

Estilo de diseño:

2 electrodo

Resaltar:

Pt1000 Temperature Element Low Conductivity Sensor

316 Stainless Steel or Titanium Low Conductivity Sensor

2-Electrode Design Low Conductivity Sensor

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 días de trabajo

Condiciones de pago

Moneygram, Western Union, T/T, D/P, D/A, L/C

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenga el mejor precio

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenga el mejor precio

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenga el mejor precio

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenga el mejor precio

Contacta con nosotros

86--17719566736

Contacta ahora

Descripción del producto

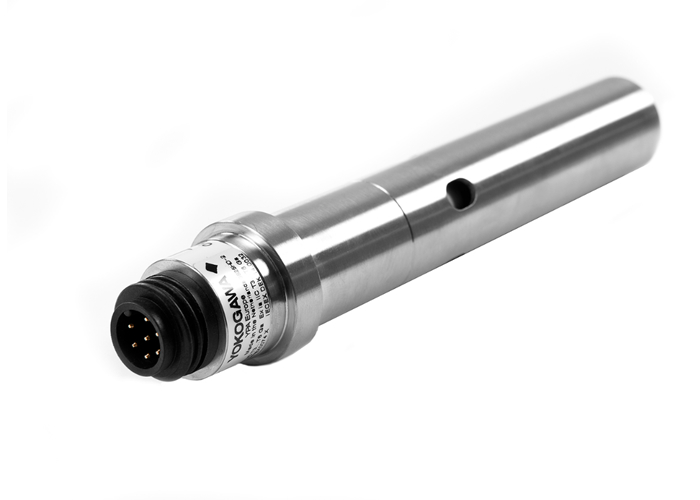

Pure Water (Low) Conductivity Sensors SC4A(J)/SC42

Measurement of specific conductivity in aqueous solutions is critical for determining water purity. Yokogawa's precision sensors are engineered to deliver accurate measurements even under extreme conditions, compensating for temperature variations, polarization effects, and cable capacitances.

Key Features

Designed for low conductivity applications in semiconductor, power, water, and pharmaceutical industries
Compact design with multiple mounting options including compression gland for direct pipe insertion
Available in Stainless Steel or Titanium versions with fixed cable or Variopin connector
Includes 3.1 material certificate for metal wetted parts
FDA-approved material combinations available for pharmaceutical applications
Sanitary clamp mountings available for pure water systems in injectable solution preparation

Product Selection

SC4A(J)

SC42 Large Bore

SC42 Small Bore

Specification	SC4A(J)	SC42 Large Bore	SC42 Small Bore
Cell Constants	0.02/cm; 0.1/cm	0.01/cm; 0.1/cm; 1.0/cm	0.02/cm; 0.1/cm; 1.0/cm
Ranges	0.04-400 µS/cm; 0.2-2,000 µS/cm	0.02-2,000 µS/cm; 0.2-20,000 µS/cm; 2.0-200,000 µS/cm	0.04-400 µS/cm; 0.4-2,000 µS/cm; 4.0-5,000 µ/cm
Temperature Element	Pt1000	Pt1000	Pt1000
Pressure Rating	10 bar/142 PSIG	10 bar/142 PSIG	7 bar/100 PSIG
Maximum Temperature	110°C/230°F	150°C/302°F	100°C/212°F
Installation Connections	3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp' Retractable	Requires FD40, FS40 or FF40 Holder	3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp
Integral Cable	YES	NO	YES
Materials Of Construction	316 Stainless Steel or Titanium	316 Stainless Steel	316 Stainless Steel or Titanium
Design Style	2-Electrode	2-Electrode	2-Electrode
