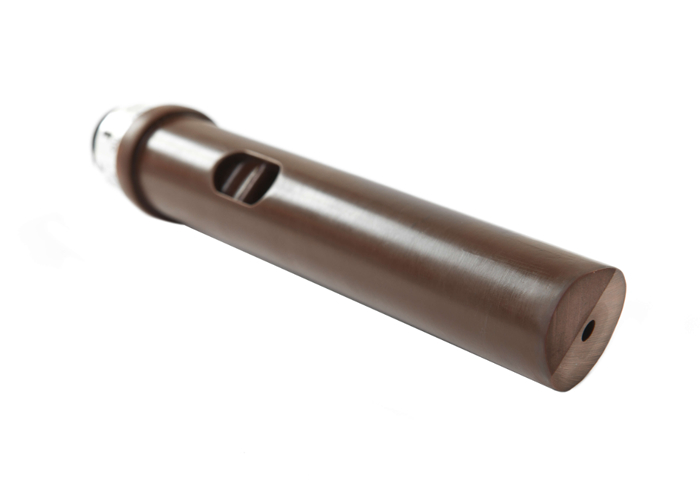

Name: High Pressure 10 bar/142 PSIG Conductivity Sensor with 150°C/302°F Temperature Range and 7 bar/100 PSIG Rating for Water Quality Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SC42/SC4A (J)
Price: 5,000.00 USD
Availability: InStock

En casa > productos > sensor de la calidad del agua >

High Pressure 10 bar/142 PSIG Conductivity Sensor with 150°C/302°F Temperature Range and 7 bar/100 PSIG Rating for Water Quality Monitoring

10 bar/142 PSIG Conductivity Sensor

150°C/302°F Water Quality Sensor

7 bar/100 PSIG Contacting Sensor

Nombre de la marca:

Yokogawa

Número de modelo:

SC42/SC4A (J)

Contacta con nosotros

Solicitar una cita

Detalles del producto

Materiales de la construcción:

316 acero inoxidable o titanio

Diseño SITLE:

2 electrodo

Elementos de temperatura:

PT1000

Resaltar:

10 bar/142 PSIG Conductivity Sensor

150°C/302°F Water Quality Sensor

7 bar/100 PSIG Contacting Sensor

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 días de trabajo

Condiciones de pago

Moneygram, Western Union, T/T, D/P, D/A, L/C

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenga el mejor precio

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenga el mejor precio

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenga el mejor precio

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenga el mejor precio

Contacta con nosotros

86--17719566736

Contacta ahora

Descripción del producto

Contacting Conductivity Sensors SC42/SC4A(J)

Why Measure Conductivity?

Conductivity serves as a cost-effective, low-maintenance indicator of water quality. High-quality water with minimal contaminants exhibits low conductivity. Compared to pH measurement, conductivity requires far less maintenance and minimal calibration. Common applications include boiler feedwater, reverse osmosis (RO), and demineralizer systems.

Conductivity measurements can correlate to percentage concentration values for solutions like acids or bases, as conductivity increases with ion concentration. However, this correlation is only valid for single-chemical solutions, not mixtures.

Measurement Methods

Two primary sensor types measure conductivity:

Contacting Sensors: Measure conductivity by applying alternating current to immersed electrodes and measuring resulting voltage
Inductive (Toroidal) Sensors: Electrodeless measurement method

Measurement Accuracy Factors

Several factors can influence conductivity measurement accuracy:

Polarization: Affects electrode performance
Contamination: Deposits on electrode surfaces cause lower readings (4-pole cells prevent this)
Cable Resistance: Can introduce measurement errors
Temperature: Conductivity increases with temperature

Product Specifications

Model Code	SC42 Large Bore	SC4A(J)	SC42 Small Bore
Cell Constants	0.01/cm; 0.1/cm; 1.0/cm	0.02/cm; 0.1/cm	0.02/cm; 0.1/cm; 1.0/cm
Ranges	0.02-2,000 µS/cm; 0.2-20,000 µS/cm; 2.0-200,000 µS/cm	0.04-400 µS/cm; 0.2-2,000 µS/cm	0.04-400 µS/cm; 0.4-2,000 µS/cm; 4.0-5,000 µ/cm
Temperature Element	Pt1000	Pt1000	Pt1000
Pressure Rating	10 bar/142 PSIG	10 bar/142 PSIG	7 bar/100 PSIG
Maximum Temperature	150°C/302°F	110°C/230°F	100°C/212°F
Installation Connections	Requires FD40, FS40 or FF40 Holder	3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp; Retractable	3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp
Integral Cable	NO	YES	YES
Materials Of Construction	316 Stainless Steel	316 Stainless Steel or Titanium	316 Stainless Steel or Titanium
Design Style	2-Electrode	2-Electrode	2-Electrode
