Descripción del producto

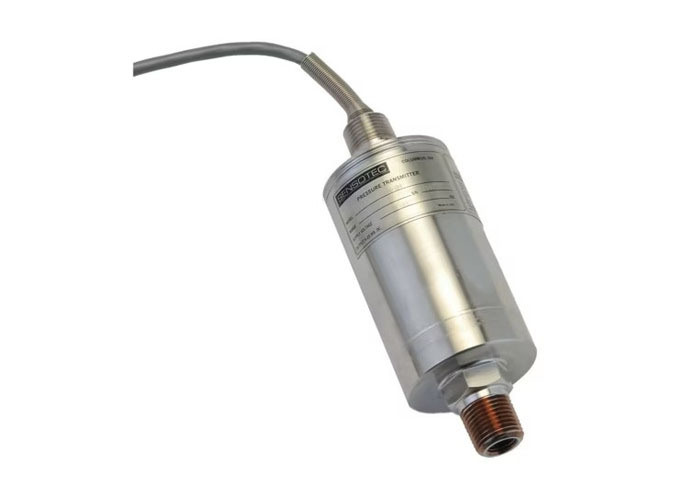

Honeywell Model 811FM PRESSURE TRANSDUCERS

Two-wire. Gage/absolute pressure transmitter. psig/a to 10,000 psig/a. 4 mA to 20 mA output. 0.25% accuracy. True gage design hermetic. Honeywell Model 811FM Two-wire Pressure Transducer with 4 mA to 20 mA Output and 0.25% Accuracy 0

The Model 811FM is a two-wire transmitter featuring welded stainless steel diaphragms suitable for use with liquid, gas or corrosive vapors. Manufactured from 17-4 PH stainless steel wetted material for ranges up to 2,000 psi or 15-5 PH stainless steel for ranges 2,000 psi and greater. This model features a hermetically-sealed, stainless steel case requiring no adjustment. These transducers are corrosion and shock resistant with reverse polarity protection. The 4 mA to 20 mA output enables long cable runs with high signal-to-noise ratio. Includes dual pipe thread pressure fitting for easy bulkhead mounting.

Key Features

2 psig/a to 10000 psig/a range
Bulkhead mounting
All welded, stainless steel, "true gage or absolute" design
Explosion proof
0.25% accuracy

Specifications

Industry	Energy
Manufacturing	Utilities
