Name: SITRANS Probe LU240
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: LU240
Price: 1,000.10 USD
Availability: InStock

En casa > productos > sensor ultrasónico del transductor >

SITRANS Probe LU240

SITRANS ultrasonic sensor probe

LU240 transducer with warranty

industrial ultrasonic transducer sensor

Nombre de la marca:

SIEMENS

Número de modelo:

LU240

Contacta con nosotros

Solicitar una cita

Detalles del producto

Principio de medición:

medida llana ultrasónica

Aplicación típica:

Medición de nivel en recipientes de almacenamiento y recipientes de proceso simples

Frecuencia:

54 kilociclos

Resolución:

≤ 3 mm (0,12 pulgadas)

Resaltar:

SITRANS ultrasonic sensor probe

LU240 transducer with warranty

industrial ultrasonic transducer sensor

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

MoneyGram, Western Union, T/T, D/P, D/A, L/C

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Pointek CLS300 - Standard

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

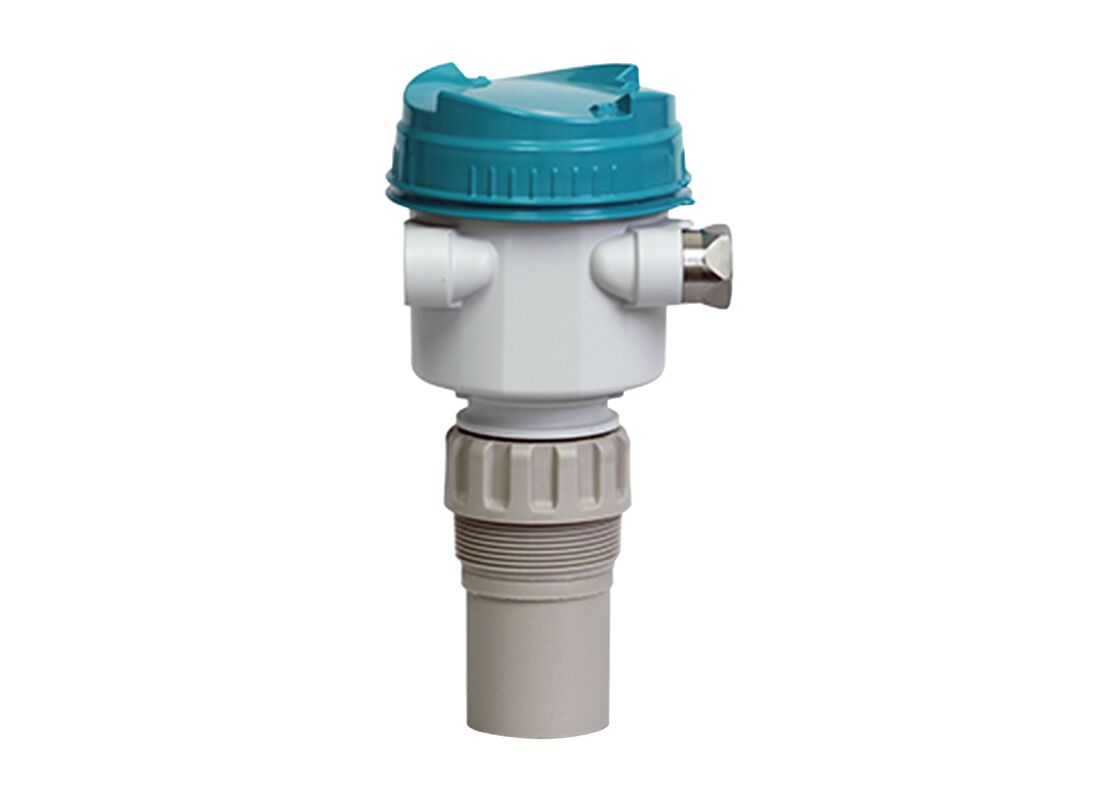

SITRANS Probe LU240 Ultrasonic Level Transmitter

SITRANS Probe LU240 ultrasonic level transmitter is ideal for level, volume, and volume flow measurements. It works with liquids, slurries, and bulk materials up to 12 m (40 ft).

Product Overview

Key Features

Continuous level measurement up to 12 m (40 ft) range
Easy installation and simple startup with quick commissioning wizards
Programming using 4-button HMI or SIMATIC PDM
Communication using HART protocol
ETFE or PVDF transducers for chemical compatibility
Process Intelligence signal processing
IQ Guard for health monitoring with 250 point diagnostic log
Auto False Echo Suppression for fixed obstruction avoidance
Low power and current startup
Optional Bluetooth configuration and monitoring via SITRANS mobile IQ
Rotating enclosure for ease of installation

Applications

SITRANS Probe LU240 is ideal for level monitoring in the water and wastewater industry, chemical storage vessels, and small bulk hoppers. The range options of 3, 6, or 12 m (10, 20, or 40 ft) provide flexibility for various industrial applications.

Key Applications

Chemical storage vessels, filter beds, liquid storage vessels

Technical Specifications

Measuring Principle	Ultrasonic level measurement
Typical Application	Level measurement in storage vessels and simple process vessels
Measuring Range	3 m model: 0.2 ... 3 m (8 inch ... 10 ft) 6 m model: 0.2 ... 6 m (8 inch ... 20 ft) 12 m model: 0.2 ... 12 m (8 inch ... 40 ft)
Frequency	54 kHz
Output	4 ... 20 mA with HART version 7
Accuracy	3 m version: 10 mm (0.39 inch) 6 m & 12 m versions: ± the greater of 0.15% of range or 6 mm (0.25 inch) ± 2 mm (0.08 inch) on ranges 4 m (13 ft) or less
Update Time	≤ 4 s
Ambient Temperature	Operating: -40 ... +80 °C (-40 ... +176 °F)
Degree of Protection	Type 4X, Type 6, IP66, IP68
Power Supply	10.5 ... 30 V DC

Configuration Options

Certifications and Approvals

FM, CCSAUS, CE, UKCA, RCM, EAC, KC, VLAREM II, RoHS, China RoHS, WEEE, REACH, FCC, ATEX, IECEx, and multiple international hazardous area certifications.

Compatible Accessories

The SITRANS Probe LU240 system supports various accessories including overvoltage protection, mounting brackets, remote displays, and Bluetooth configuration adapters.
