Name: Proline Promass U 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass U 500
Price: 2,540.00 USD
Availability: InStock

En casa > productos > Metro de flujo electromágnetico >

Proline Promass U 500 Coriolis flowmeter

Proline Promass U 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Número de modelo:

Proline Promass U 500

Contacta con nosotros

Solicitar una cita

Proline Promass U 500 Coriolis flowmeter

Detalles del producto

Materiales mojados:

Tubos de medición: Acero inoxidable 1.4435, 316L

Variables medidos:

Masa, densidad, temperatura.

Error de medida del máximo:

Flujo másico (líquido): ±0,5%

Rango de medición:

0 a 75 kg/h (0 a 165,3 lb/min)

Max. procesar presión:

6 bares (87 psi)

Resaltar:

Proline Promass U 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Promass S 300 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass P 500 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass Q 300 Coriolis flowmeter

Obtenga el mejor precio

Proline t-mass F 500 thermal mass flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

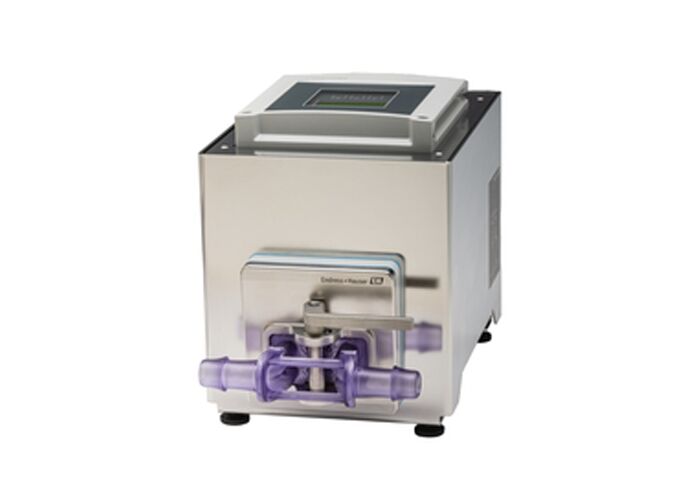

Proline Promass U 500 Coriolis Flowmeter

The Proline Promass U 500 is a precision single-use Coriolis flowmeter specifically engineered for biopharmaceutical applications in the life sciences industry.

Field of Application

Designed for the transition from multi-use to single-use devices and batch to continuous manufacturing, the Promass U 500 delivers multivariable measurement with enhanced reliability, high accuracy, and cGMP compliance. Ideal for upstream and downstream applications in monoclonal antibodies (mAb) processes.

Key Benefits

Best-in-class measuring accuracy with Coriolis multivariable technology
Highest turndown ratio - one sensor accommodates all disposable line sizes
cGMP compliance with required documentation and attributes
Simple one-hand mounting and automated calibration data transfer
Self-drainability and air bubble escape through optimized mounting angles
No field calibration required with integrated Heartbeat Technology
Digital integration with modern single pair Ethernet communication protocols

Technical Specifications

Measuring Principle	Coriolis
Nominal Diameter Range	¹⁄₈" to 1"
Measured Variables	Mass, density, temperature
Max. Measurement Error (Mass Flow)	±0.5%
Measuring Range	0 to 75 kg/h (0 to 165.3 lb/min)
Max. Process Pressure	6 bar (87 psi)
Medium Temperature Range	3 to 60°C (37.4 to 140°F)
Ambient Temperature Range	5 to 40°C (41 to 104°F)
Wetted Materials	Measuring tubes: Stainless steel 1.4435, 316L Hose connection nipple: Makrolon Rx 1805 polycarbonate

Sensor Features

One sensor fits all DN sizes with four disposable line sizes
One-hand mounting with intuitive clamping mechanism
Optimized mounting angles for self-drainability and air bubble escape
Disposable components made of 1.4435 (316L) and polycarbonate
Fully traceable cGMP compliance

Transmitter Features

Comprehensive process and diagnostic information access
Freely configurable I/O functionality
Integrated verification with Heartbeat Technology
Remote version with up to 4 I/Os
Backlit display with touch control and WLAN access
Standard cable connection between sensor and transmitter

Electrical Specifications

Display/Operation	4-line backlit display with touch control Configuration via local display and operating tools
Outputs	4-20 mA HART (active/passive) 4-20 mA WirelessHART 4-20 mA (active/passive) Pulse/frequency/switch output (active/passive) Double pulse output (active/passive) Relay output
Inputs	Status input, 4-20 mA input
Digital Communication	Modbus RS485, PROFINET over Ethernet-APL
Power Supply	AC 100 to 230 V / DC 24 V (non-hazardous area)

Certifications & Approvals

Product Safety: CE, C-tick, EAC marking
Functional Safety: IEC 61508 compliant, applicable per IEC 61511
Hygienic Approvals: cGMP compliance, ASME BPE, BPOG, FDA

Degree of Protection: Transmitter IP66/67, Type 4X enclosure; Sensor IP54
