Name: Proline Promag P 300 electromagnetic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promag P 300
Price: 2,540.00 USD
Availability: InStock

En casa > productos > Metro de flujo electromágnetico >

Proline Promag P 300 electromagnetic flowmeter

Proline Promag P 300 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Lugar de origen:

Suiza

Nombre de la marca:

Endress+Hauser

Certificación:

Número de modelo:

Proline Promag P 300

Contacta con nosotros

Solicitar una cita

Proline Promag P 300 electromagnetic flowmeter

Detalles del producto

Homologaciones para zonas peligrosasATEX, I:

Homologación LR, homologación DNV, homologación ABS, homologación BV

Homologaciones y certificados de presión.:

PED, CRN

Aprobaciones y certificados marítimos:

Homologación LR, homologación DNV, homologación ABS, homologación BV

Certificados de materiales:

3.1 material

Aprobaciones y certificados higiénicos.:

ACS, NSF 61, WRAS

Aprobación de zonas peligrosas:

En el caso de las empresas de servicios de telecomunicaciones, las autoridades competentes deberán t

Resaltar:

Proline Promag P 300 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

Proline Promass S 300 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass P 500 Coriolis flowmeter

Obtenga el mejor precio

Proline Promass Q 300 Coriolis flowmeter

Obtenga el mejor precio

Proline t-mass F 500 thermal mass flowmeter

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

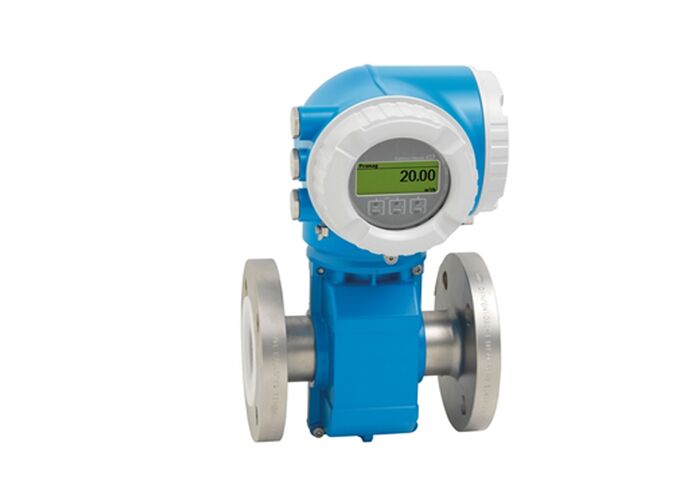

Proline Promag P 300 Electromagnetic Flowmeter

High-temperature flowmeter for process applications with a compact, easily accessible transmitter. Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.

Field of Application

Promag P is designed for chemical and process applications involving corrosive liquids and elevated medium temperatures. The compact Promag P 300 transmitter offers exceptional operational flexibility and system integration capabilities, featuring single-side access, remote display functionality, and enhanced connectivity options. Heartbeat Technology ensures continuous compliance and process safety.

Key Benefits

Versatile Applications

Wide selection of wetted materials for diverse process requirements

Energy Efficient

No pressure loss due to cross-section constriction

Maintenance-Free

No moving parts ensures reliable long-term operation

Advanced Connectivity

Multiple freely configurable I/Os and Ethernet communication

Technical Specifications

Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 15 to 600 (½" to 24")
Measured Variables	Volume flow, conductivity, mass flow
Maximum Measurement Error	Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec
Measuring Range	4 dm³/min to 9600 m³/h (1 gal/min to 44,000 gal/min)
Maximum Process Pressure	PN 40, Class 300, 20K
Medium Temperature Range	Liner material PFA: -20 to +150 °C (-4 to +302 °F) Liner material PFA high-temperature: -20 to +180 °C (-4 to +356 °F) Liner material PTFE: -40 to +130 °C (-40 to +266 °F)

Wetted Materials

Liner	PFA; PTFE
Electrodes	1.4435 (F316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium

Additional Features

All common Ex approvals for hazardous areas
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display capability
Multiple digital communication protocols: HART, PROFIBUS, FOUNDATION Fieldbus, Modbus, PROFINET, Ethernet/IP, OPC-UA
Functional safety according to IEC 61508 for safety-relevant applications
Heartbeat Technology for integrated verification and measurement traceability
