Name: DO30G Galvanic-cell Dissolved Oxygen Sensor with Fast Response Time and Good Long Term Stability
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: No más de 30
Price: 5,000.00 USD
Availability: InStock

En casa > productos > sensor de la calidad del agua >

DO30G Galvanic-cell Dissolved Oxygen Sensor with Fast Response Time and Good Long Term Stability

Galvanic-cell Dissolved Oxygen Sensor

Fast Response Time DO Sensor

Good Long Term Stability Oxygen Probe

Nombre de la marca:

Yokogawa

Número de modelo:

No más de 30

Contacta con nosotros

Solicitar una cita

DO30G Galvanic-cell Dissolved Oxygen Sensor with Fast Response Time and Good Long Term Stability

Detalles del producto

Objeto de medición:

Concentración de oxígeno disuelto en solución (agua)

Principio de medición:

Método de las células galvánicas

Detector de temperatura de resistencia (RTD):

PT1000

Temperatura de la solución bajo medición (suma):

Max. 0 a 40 ° C

Resaltar:

Galvanic-cell Dissolved Oxygen Sensor

Fast Response Time DO Sensor

Good Long Term Stability Oxygen Probe

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Detalles de empaquetado

Cada unidad tiene una caja individual y todas las cajas están empacadas en paquetes estándar o solic

Tiempo de entrega

5-8 días de trabajo

Condiciones de pago

Moneygram, Western Union, T/T, D/P, D/A, L/C

Capacidad de la fuente

1000 piezas/piezas por semana negociables

Productos relacionados

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenga el mejor precio

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenga el mejor precio

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenga el mejor precio

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenga el mejor precio

Contacta con nosotros

86--17719566736

Contacta ahora

Descripción del producto

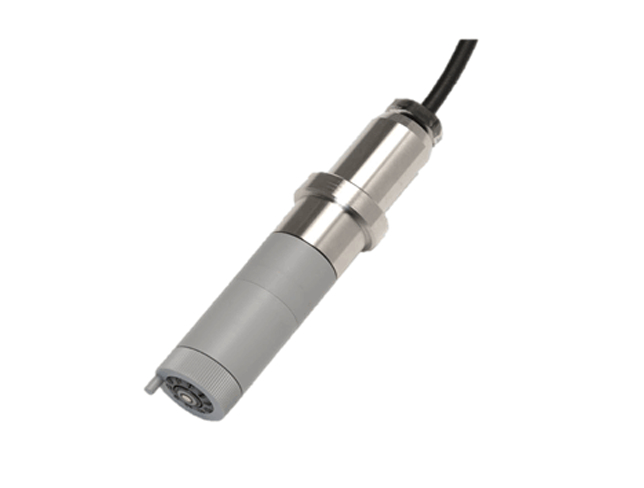

DO30G Dissolved Oxygen Sensor

The DO30G dissolved oxygen sensor is designed for water treatment applications including sewage treatment, activated sludge processes, potable water treatment, river monitoring, intake protection, and fish farming. This galvanic cell sensor offers fast response times and long-term stability, with replaceable diaphragm and cable for simplified maintenance. Integrated temperature sensor provides automatic compensation. Compatible with both floating ball and immersion fittings.

Key Features

Fast response time for real-time monitoring
Excellent long-term measurement stability
Easy membrane replacement procedure
Integrated temperature compensation
Versatile installation options

PB350G/PB360G Floating Ball Fitting

The floating ball holder minimizes process fouling with its innovative design. A brass ring facilitates membrane integrity checks and prevents algae buildup, eliminating the need for cleaning systems. Requires only periodic inspection and calibration.

Floating Ball Features

Simple installation process
Easy calibration procedure
Built-in sensor diagnosis for membrane integrity
Anti-fouling design reduces maintenance

FD30/PH8HG/DOX8HS Immersion Adapter

Designed for tank, open vessel, and drain installations with adjustable lengths from 0.5 to 2.0 meters. Supports flange mounting and includes optional jet cleaner for applications with high solids content, extending continuous measurement periods and simplifying maintenance.

Immersion Adapter Features

Adjustable immersion depth options
Flange mounting capability
Optional jet cleaner accessory
Membrane integrity diagnostics

Technical Specifications

Parameter	DO30G Specifications
Measurement Object	Dissolved oxygen concentration in water
Measurement Principle	Galvanic-cell method
Measurement Range	0-20 ppm, 0-20 mg/L, or 0-100% saturation Configured through dissolved oxygen converter
Temperature Sensor	Pt1000 RTD
Construction Materials	Sensor unit: Rigid PVC, Stainless steel O-ring: Nitrile rubber Membrane: Fluoro-resin (FEP) Cable: Heat-resistant flexible PVC Cable outlet: Polycarbonate resin
Cable Options	Lengths: 3m, 5m, 10m, 15m, or 20m Terminal types: Pin-type, M4/M3 Ring-type, or Fork-type Specified when ordering
Weight	Approx. 0.3 kg + (0.12 * cable length in meters) Example: 5m cable ≈ 0.9 kg
Operating Conditions	Solution Temperature: 0-40°C Flow Rate: ≥20 cm/s (recommended) Pressure: Normal: 0-30 kPa, Max: 100 kPa
Performance Characteristics	Repeatability: 0.1 mg/L or 3% FS (whichever greater) Temp Compensation Error: ±3% FS (±5°C change) Response Time: ≤2 minutes (90% response)
