Descripción del producto

Differential pH and ORP Sensors

Yokogawa's cation differential pH and ORP sensors are engineered for challenging applications where conventional sensors fail. These specialized sensors excel in diverse environments ranging from brine solutions to electrolysis processes and cheese manufacturing.

Common measurement challenges in these applications typically stem from reference cell issues, including:

High diffusion potentials at the reference junction
Elevated temperatures (common in chlorinated brine processes)
High ground-loop currents

Our differential sensors feature a sealed glass reference system with no liquid junction or process-exposed electrolyte. This innovative design eliminates diffusion potentials and fouling, ensuring stable measurements with minimal maintenance requirements.

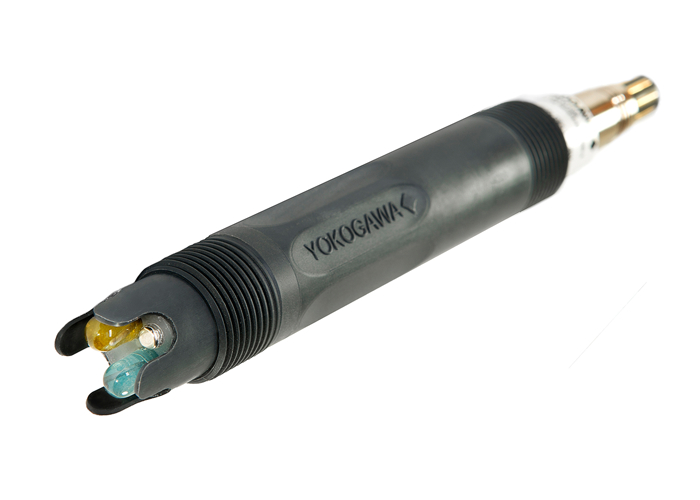

FU20-FTS Differential Sensor

FU20-FTS

The FU20-FTS represents Yokogawa's latest advancement in pH sensor technology, combining the precision of our 12mm differential sensor with the durability of our renowned FU20 wide-body design.

While Yokogawa utilizes proven silver/silver chloride reference cells for cost-effective performance across most applications, our differential technology provides superior longevity in demanding conditions. Conventional sensors require frequent maintenance to prevent reference poisoning, whereas differential sensors offer significant advantages in high-temperature, high-pressure industrial applications.

Key Advantages

No junction - eliminates junction-related failures
Completely sealed design prevents process contamination
Eliminates reference element poisoning
No diaphragm - prevents plugging or coating issues
No electrolyte outflow - prevents depletion problems

FU20-FTS Specifications
Measurement Theory	Cation Reference
pH Range	2-14
ORP Range	-1500 to 1500 mV
Temperature Range	0 to 105°C (14 to 221°F)
Pressure Range	0 to 10 bar (0 to 145 PSIG) @ 25°C 0 to 5 bar (0 to 72 PSIG) @ 105°C
